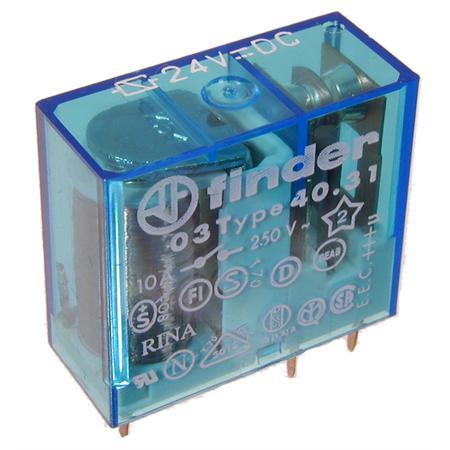

1 x skifte relæ 24VDC 10A 900R 40.31.9.024.0000
Varenummer:
88-658
Varekode:
F4031-24
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: E6411
FINDER Power PCB Relays
Series: 40.31
Contact: SPDT
Rated Current: 10A
Housing: 29,0x12,4x25,0mm
FINDER Power PCB Relays
Series: 40.31
Contact: SPDT
Rated Current: 10A
Housing: 29,0x12,4x25,0mm
| Features |
| • F4031-_: vertical, standard • F4031-_S: vertical, sensitive DC coil 500mW • Versions with DC or AC coil • Flux protection (260°C, 5s) • Protection class RTII |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgNi |
| Rated Current: | 10A |
| Max. Switching Current: | 20A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 500VA |
| Creepage/Clearance: | 8mm |
| Operate/Release Time | |
| Standard: | 7/3ms |
| Sensitive: | 12/4ms |
| Testing Voltage | |
| Coil/Contact: | 6000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical (AC/DC): | 10x106/ 20x106 Operations |
| Electrical: | 20x104 Operations |
| Operating Temperature: | -40...+85°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| F4031-_ | [V] | [V] | [V] | [mA] | [mW] | [W] |
| 12 | 12V DC | 8,8 | 18 | 55 | 650 | 220 |
| 12S | 12V DC | 8,8 | 21 | 40 | 500 | 300 |
| 24 | 24V DC | 17,5 | 36 | 27 | 650 | 900 |
| 24S | 24V DC | 17,5 | 42 | 20 | 500 | 1200 |
| AC230 | 230V AC | 184 | 253 | 5 | - | 28000 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
| ||||||
| Note |
| • Assembly by direct soldering intro the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies withVDE0106, EN50178, EN60204 and EN60335 secure separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
          |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time 8 weeks. Wash tight version of 500 pieces on request, delivery time 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4031-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
