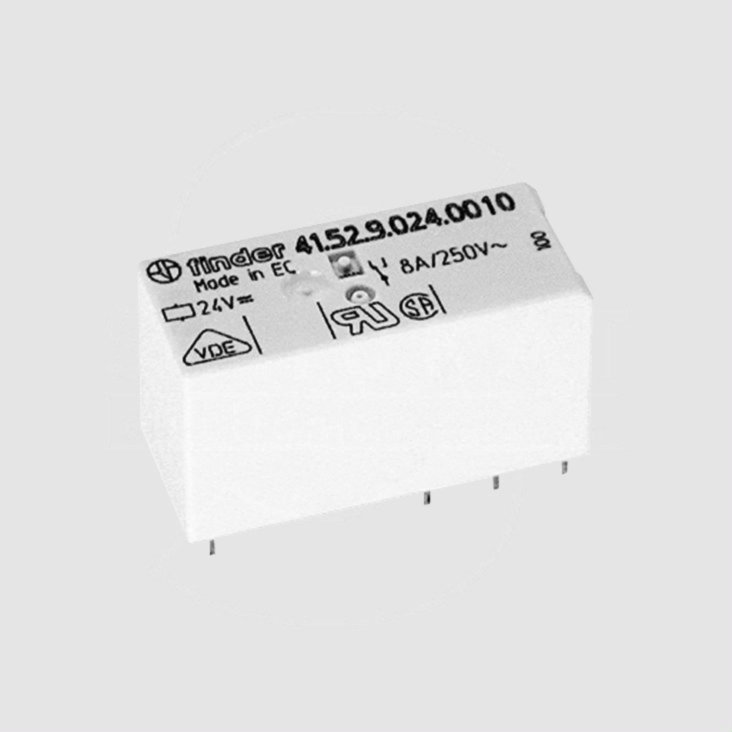

Relay DPDT 8A 24V 1440R 41.52.9.024.0010
Varenummer:
88-644
Varekode:
F4152-24
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6375
FINDER Power PCB Relays
Series: 41.52 and 41.61
Contact: SPDT or DPDT
Rated Current: 8A and 16A
Housing: 29,0x12,7x15,7mm
E6375
FINDER Power PCB Relays
Series: 41.52 and 41.61
Contact: SPDT or DPDT
Rated Current: 8A and 16A
Housing: 29,0x12,7x15,7mm
| Features |
| • Low power consumption 400 mW • Safe separation between coil and contacts according to VDE0106, EN50178, EN60204 and EN60336 • 8mm, 6kV (1.2/50µs) isolation between coil and contacts • Protection class RTII (flux proof) |
 |
| Technical Specifications |
| |
| Contact | |
| F4161_: | SPDT |
| F4152_: | DPDT |
| Contact Material: | AgNi |
| Rated Current | |
| F4161_: | 16A |
| F4152_: | 8A |
| Max. Switching Current | |
| F4161_: | 30A |
| F4152_: | 15A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power | |
| F4161_: | 4000VA |
| F4152_: | 2000VA |
| Operate/Release Time: | 5/4ms |
| Testing Voltage | |
| Contact/Contact: | 4000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 30x106 Operations |
| Electrical | |
| F4161_: | 70x103 Operations |
| F4152_: | 80x103 Operations |
| Operating Temperature: | -40...+85°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | RN |
| [V DC] | [V] | [V] | [mA] | [W] | |
| F41_-12 | 12 | 8,4 | 18,0 | 33,3 | 360 |
| F41_-24 | 24 | 16,8 | 36,0 | 16,7 | 1.440 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Note |
| • Assembly by direct soldering on PCB or • PCB socket F95132, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
