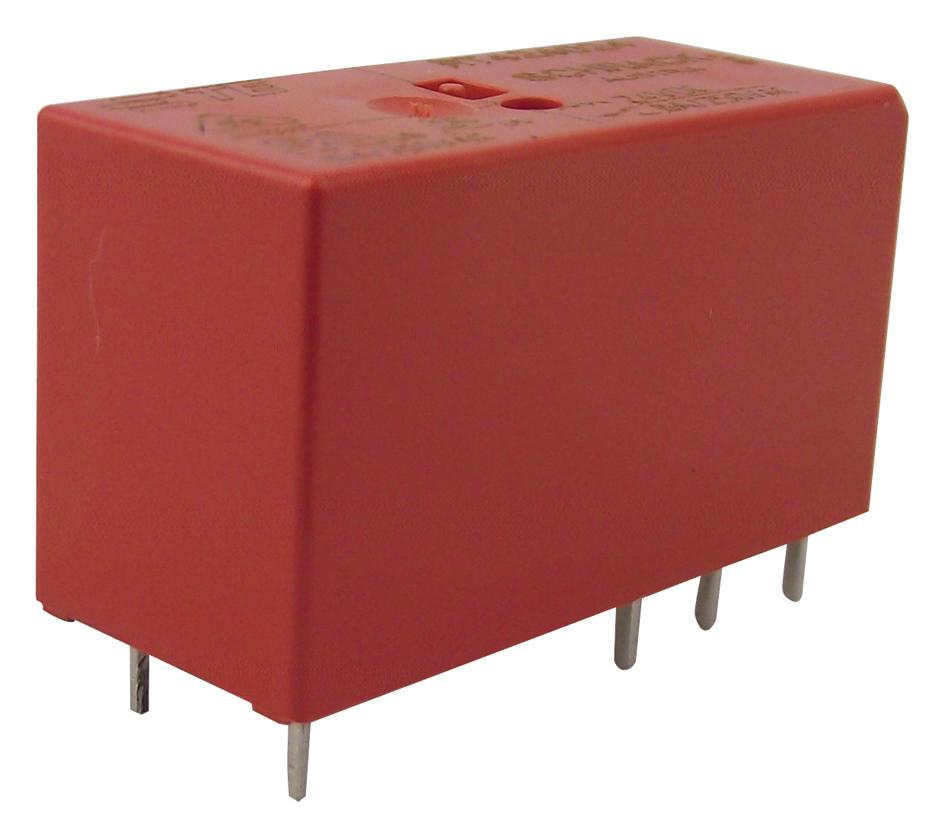

2xSkifte PrintRelæ 24VDC 8A 1440R
Varenummer:
88-635
Varekode:
RT424024
Vægt:
20 g
Lagerstatus:
Lager: 42 stk.
- RELAY, PCB, DPCO, 24VDC
- Relay Type: General Purpose
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 8A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Coil Resistance: 1.44kohm
- Contact Configuration: DPCO
- Coil Type: DC, Monostable
- Nom Operating Power: 400mW
- Relay Mounting: PCB
- External Height: 15.7mm
- External Width: 29mm
- External Depth: 12.7mm
- Approval Bodies: BEAB / CSA / VDE
- Approval Category: UL Recognised
- Contact Material: AgNi 90/10
- Current Rating: 8A
- DC Coil Power: 400mW
- Dielectric Voltage Coil to Contact: 5000V
- Dielectric Voltage Contact to Contact: 1000V
- External Length / Height: 15.7mm
- Lead Spacing: 5mm
- Mounting Type: PCB
- No. of Pins: 8
- No. of Poles: 2
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Release Time: 2ms
- Row Pitch: 7.5mm
- Series: RT2
- Switching Power Max: 2000VA
- Switching Voltage Max: 400VAC
- Voltage Rating V AC: 250VAC
Stregkode:
680-3849
Intern reference:
88635
Varekode:
RT424024
