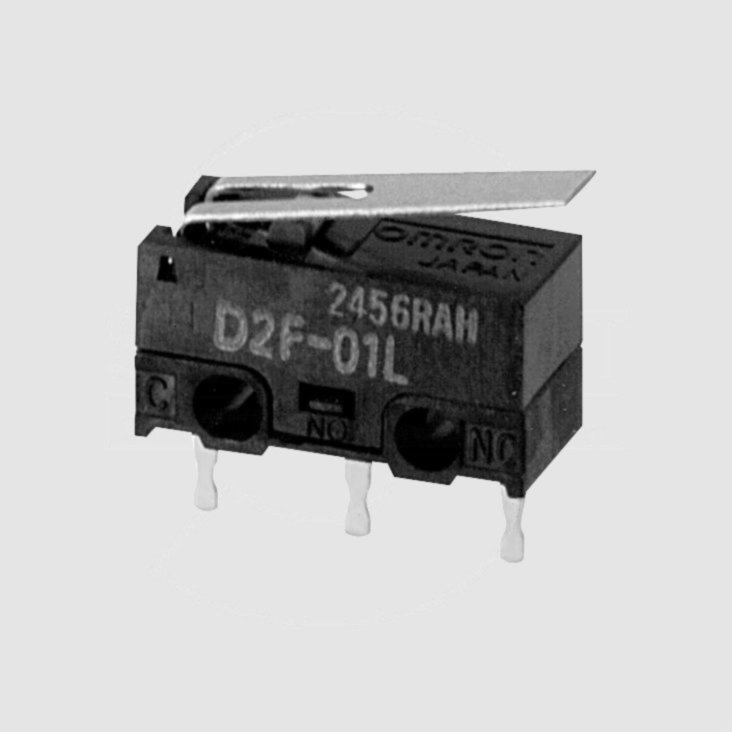

Microswitch 12,8x6x5,8mm. Lever 125V 3A 150Gf D2F223
Varenummer:
88-609
Varekode:
D2F-L
Vægt:
0 g
Lagerstatus:
Ikke på lager
- MICROSWITCH, LEVER
- Contact Configuration: SPDT
- Microswitch Type: Snap Action
- Actuator Style: Lever
- Operating Force Max: 80gf
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 30V
- Contact Current Max: 3A
- Switch Terminals: Solder
- SVHC: No SVHC (19-Dec-2011)
- Actuation Type: Lever
- Actuator Type: Hinge Lever
- Approval Bodies: CSA / UL
- Contact Configuration: SPDT
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage DC Max: 2A
- Contact Current AC: 3A
- Contact Current AC Max: 3A
- Contact Current DC Max: 2A
- Contact Current Max: 3A
- Contact Resistance: 30mohm
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- Differential Travel Max: 0.12mm
- External Depth: 12.8mm
- External Length / Height: 11.8mm
- External Width: 5.7mm
- Fixing Centres: 6.5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500V
- Lever Length: 12.8mm
- No. of Electrical Operations: 30000
- Operating Temperature Max: 85°C
Stregkode:
88609
Intern reference:
88609
Varekode:
D2F-L
