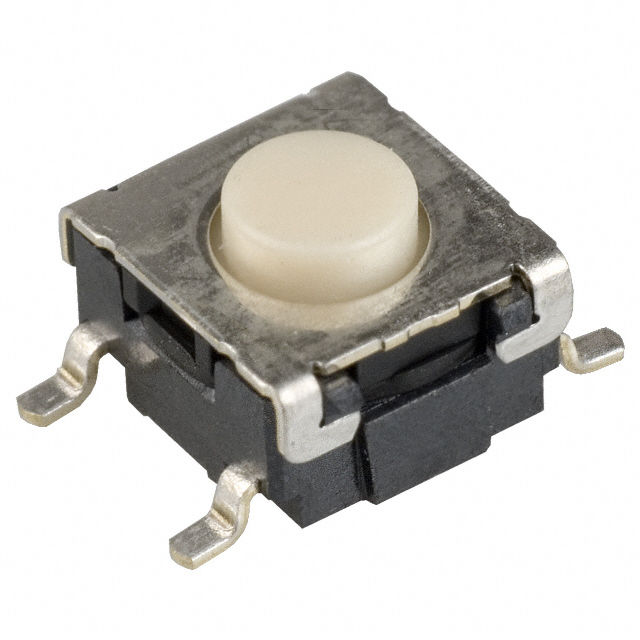

SMD Tact Switch Horizontal 1,57N Taped
Varenummer:
88-600
Varekode:
B3S-1000P
Vægt:
0 g
Lagerstatus:
Ikke på lager
- SPST-NO contact configuration
- Switching capacity of 1 to 50mA at 5VDC to 24VDC
- Maximum contact resistance of 100mohm
- Minimum insulation resistance of 100Mohm
- Sealed construction conforming to IP67
- Surface mounting terminals for high density mounting
- Ground terminal available to protect against static electricity
- Operating force of 160gf (general purpose) and 230gf (high force)
- 6mm x 6mm size
Stregkode:
686-6752
Intern reference:
88600
Varekode:
B3S-1000P
