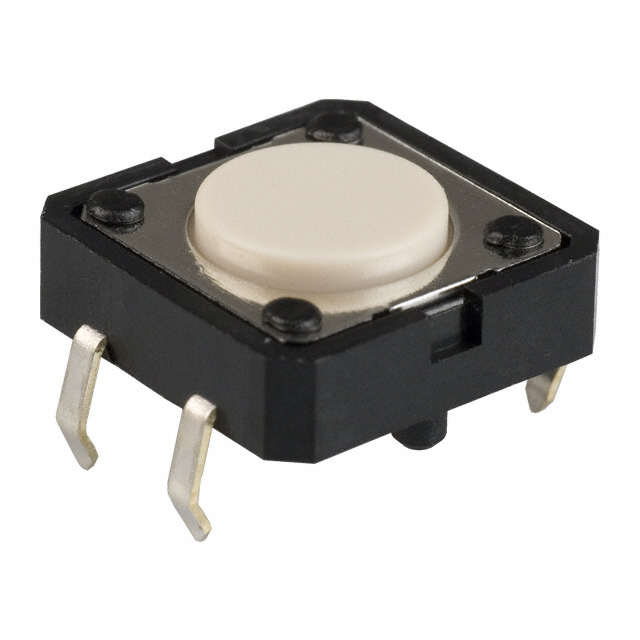

Tact Switch PC Horizontal 4,3mm 1,27N
Varenummer:
88-590
Varekode:
B3F-4000
Vægt:
0 g
Lagerstatus:
Lager: 174 stk.
Gruppe:
E3361
OMRON Tact Switches
Series: B3F
Dimensions: 12x12mm
Operating Force: 1,27N or 2,55N
OMRON Tact Switches
Series: B3F
Dimensions: 12x12mm
Operating Force: 1,27N or 2,55N
| Features |
| • Very high mechanical and electrical operating life • Jump contact mechanism with short contact travel • Flux proof, automatic soldering possible |
 |
| Technical Specifications |
| |
| Switching Capacity, Max.: | 1...50mA/5...24V DC |
| Test Voltage, 1min.: | 500V AC |
| Switching Type: | 1 NO Contact |
| Contact Surface: | Silver-plated |
| Solder Temperature, Max.: | 260°C, 5s |
| Operating Temperature: | -25...+70°C |
| |
| Part Nr. | Operating Life | F | S |
| with Switching Capacity | |||
| [N] | [mm] | ||
| B3F-4000 | 3 Mio. | 1,27 | 0,3 |
| B3F-4005 | 1 Mio. | 2,55 | 0,3 |
| B3F-4050 | 3 Mio. | 1,27 | 0,3 |
| B3F-4055 | 1 Mio. | 2,55 | 0,3 |
| F = Operating Force, S = Operating Path | |||
| |||
| Terms of Delivery |
| Minimum order quantity 1 PKU = 100 pieces Form of delivery: loose in bag |
|
| Manufacturer |
 |
| http://www.omroncomponents.co.uk |
|
Stregkode:
88590
Intern reference:
88590
Varekode:
B3F-4000
