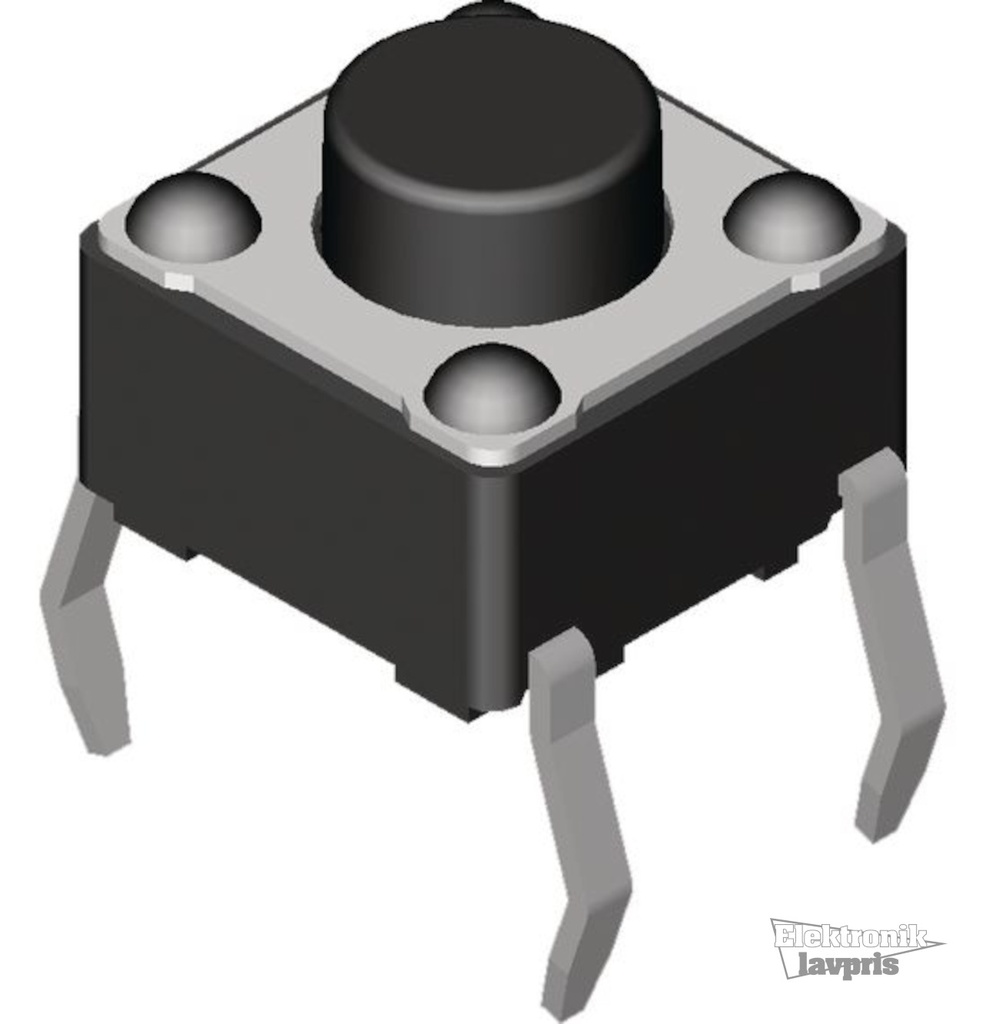

Tact Switch PC Horizontal 4,3mm 1,6N
Varenummer:
88-562
Varekode:
DTS61N
Vægt:
0 g
Lagerstatus:
Ikke på lager
Taktil kontakt DTS-61N-V
Gennemgangshul
1NO
1N
6.2 x 6.2mm
- TACTILE SWITCH, 4.3MM, 160G
- Contact Configuration: SPST-NO
- Operating Force: 160gf
- Contact Voltage DC Nom: 12V
- Contact Current Max: 50mA
- Actuation Type: Top
- Switch Terminals: Solder
- Actuator / Cap Colour: Brown
- Bezel Height: 3.5mm
- Contact Current DC Max: 50mA
- Contact Current Rating: 50mA
- Contact Material: Phosphor Bronze
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- Dielectric Strength VDC: 250V
- External Length / Height: 4.3mm
- External Width: 6mm
- Height: 4.3mm
- Insulation Resistance: 10Mohm
- Length: 6mm
- No. of Electrical Operations: 100000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Pin Diameter: 1.0mm
- Series: MCDTS6
- Switch Operation: SPNO
- Terminal Type: Through Hole
- Travel: 0.25mm
- Voltage Rating V DC: 12V
Stregkode:
88562
Intern reference:
88562
Varekode:
DTS61N
