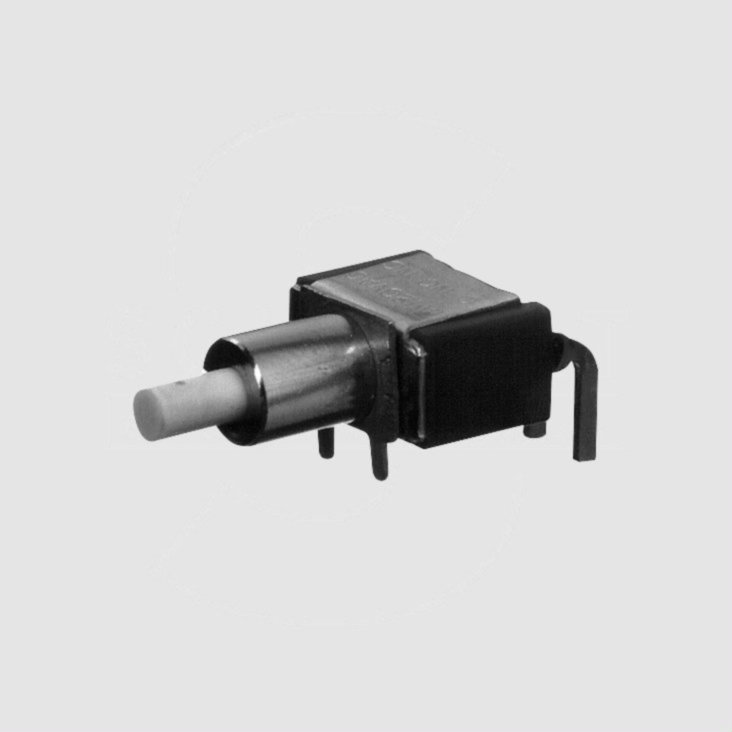

Mom.Switch SPDT 20VDC 20mA Horizontal PC
Varenummer:
88-496
Varekode:
MDT8701LP
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E3151
SALECOM Pushbutton Momentary Switches
Series: T-80-P
Contact: SPDT
SALECOM Pushbutton Momentary Switches
Series: T-80-P
Contact: SPDT
| Features |
| • Pushbutton momentary switch with print or solder terminals • sealed against dirt and fluxing agent • particularly suitable for signal applications due to the gold-plated switching contacts • suitable for use in applications where space is very limited |
 |
| Technical Specifications |
| |
| Switching Capacity: | 0,4VA at 20V DC |
| Switching Cycles Under Load: | 50.000 |
| Contact Resistance: | 10mW |
| Insulation Resistance: | 1000MW |
| Dielectric Strength: | 1000Veff |
| Operating Temperature: | -30...+85°C |
| Contacts: | Brass, Gold-plated Over Nickel |
| Terminals: | Brass, Gold-plated Over Nickel |
| Sealing: | Epoxy |
| Shell Material: | Diallylphthalate (DAP) |
| |
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Delivery contents: MDT8701S: 2 nuts, retaining ring, toothed disk |
|
| Manufacturer |
| Salecom http://www.salecom.com.tw |
|
