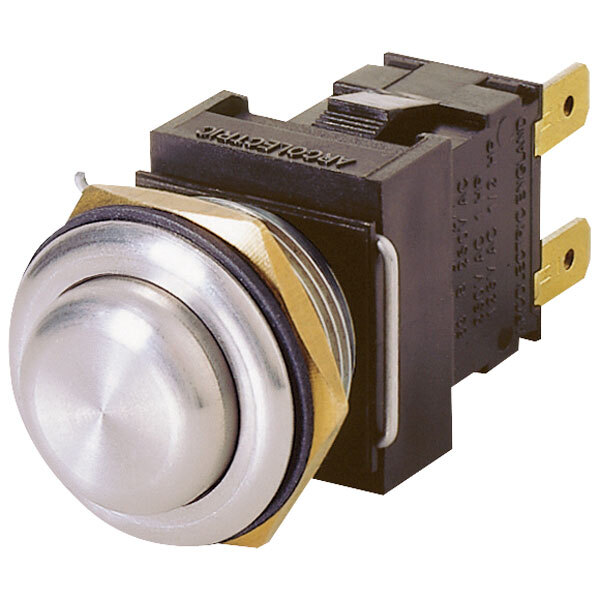

Tryktast 2-pol ON/MOMENT IP66 vandalsikker
Varenummer:
88-490
Varekode:
H8351RP
Vægt:
0 g
Lagerstatus:
Lager: 2 stk.
Gruppe: E2915
ARCOLECTRIC Pushbutton Switches
Series: 8300
Vandal-Proof, IP 66
Panel Cut-out: Ø19,2mm
| Features |
| • H8350RP: vandal-proof latching pushbutton • H8351RP: vandal-proof momentary pushbutton • Protection class IP66 |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||
| Operating Voltage, Max.: | 250V AC | Switching Current, Max.: | 16A | Switching Current at Inductive Load, Max.: | 4A | Ambient Temperature, Max.: | 85°C | Insulation Resistance: | >20MW | Contact Resistance | (New State, 12V DC/1A): | 100mW | Contact Opening Width: | 3mm | Soldering Conditions (Hand Solder): | 350°C/6s | Materials | Shell: | Nylon 6.6 | Pushbutton: | Stainless Steel | Current-carrying Parts: | Cu Alloy | Contacts: | Silver-plated | Flammability Class: | UL94V2 | ||||
|
|||||||||||||||||||||||||||||||
| Approvals |
 05: 16 (4)A, 250Vac, T85 85°C, file E45221,  file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
Stregkode:
88490
Intern reference:
88490
Varekode:
H8351RP
