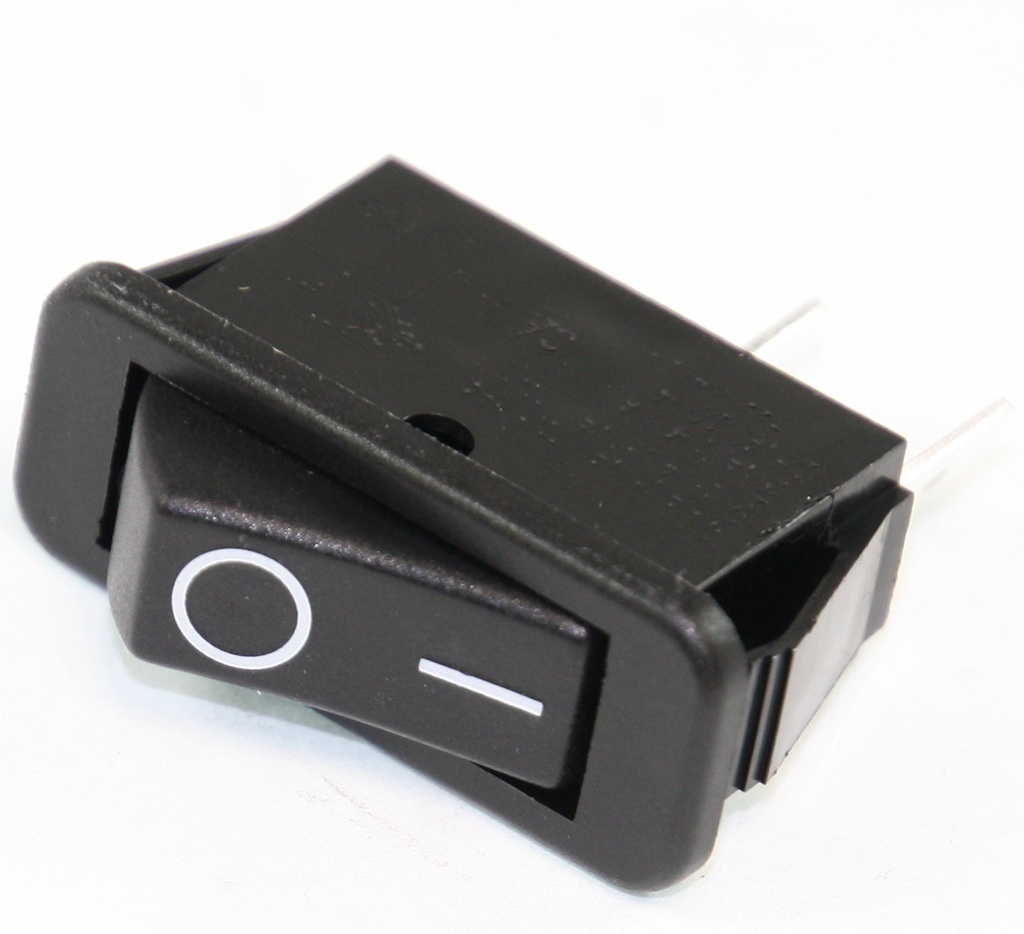

Vippeafbryder 1xON/OFF 16A mrkt: o-
Varenummer:
88-439
Varekode:
C1300AB01
Vægt:
10 g
Lagerstatus:
Lager: 27 stk.
Gruppe: E2133
ARCOLECTRIC Rocker Switches
Series: 1300, 1350
Panel Cut-out: 11/22x30mm
Inrush Current: 150A
| Features |
| • For 11/22x30mm panel cut-outs • 1- and 2-pole versions • With connector 6,3x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Imprint | C1300AB01 | 1 x On/Off | Black | Black | I/O | C1350AB01 | 2 x On/Off | Black | Black | I/O | |||||
|
|||||||||||||||||||
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||||
| Operating Voltage, Max.: | 250V AC | Switching Current, Max.: | 16A | Switching Current at Inductive Load, Max. | C1300AB01: | 6A | C1350AB01: | 4A | Inrush Current (EN61058-1): | 150A | Ambient Temperature, Max. | C1300AB01: | 125°C | C1350AB01: | 85°C | Insulation Resistance: | >20MW | Contact Resistance | (New State, 12V DC/1A): | 100mW | Contact Opening Width: | 3mm | Soldering Conditions (Hand Solder): | 350°C/6s | Materials | Shell and Rocker: | Nylon 6.6 | Current-carrying Part: | Cu Alloy | Contacts: | Silver-plated | Flammability Class: | UL94V2 | ||||||
|
|||||||||||||||||||||||||||||||||||||||
| Panel Cut-out |
| Part Nr. | Panel Thickness | X | Y | [mm] | [mm] | [mm] | C1300AB01 | 0,75...2,50 | 30,0...30,1 | 11,0...11,1 | C1350AB01 | 0,75...2,50 | 30,0...30,1 | 22,1...22,2 | |||||
|
|||||||||||||||||||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
C1300AB01:  15: 16 (6)A, 250Vac, T125C1350AB01: 15: 16 (4)A, 250Vac, T85  20A 250Vac 1hp, 125Vac ½hp 85°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
Stregkode:
278-9733
Intern reference:
88439
Varekode:
C1300AB01
