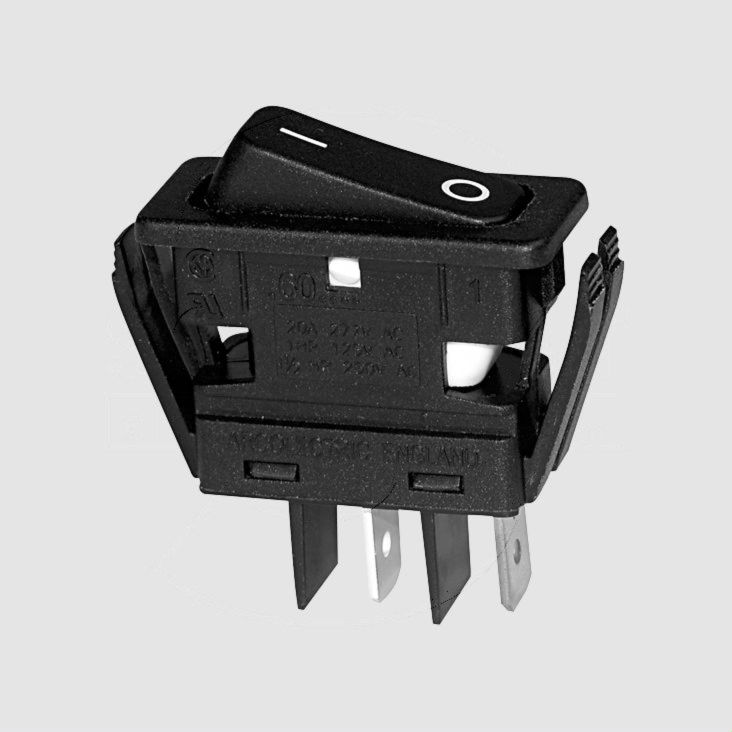

Vippeafbryder 1-pol ON/OFF med SORT -o tast
Varenummer:
88-433
Varekode:
C6000AL
Vægt:
10 g
Lagerstatus:
Lager: 45 stk.
Gruppe:
E2131
ARCOLECTRIC Rocker Switches
Series: 6000
Panel Cut-out: 11x30mm
Inrush Current: 150A
ARCOLECTRIC Rocker Switches
Series: 6000
Panel Cut-out: 11x30mm
Inrush Current: 150A
| Features |
| • For 11x30mm panel cut-outs • 1-pole version • With connector 6,3x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Impress |
| C6000AL | 1 x On/Off | Black | Black | I/O |
| C6003AL-RT | 1 x On/Off | Black | Illuminated Red | I/O |
| ||||
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Inrush Current (EN61058-1): | 150A |
| Ambient Temperature, Max.: | 125°C |
| Insulation Resistance: | >20MW |
| Contact Resistance | |
| (New State, 12V DC/1A): | 100mW |
| Contact Opening Width: | 3mm |
| Soldering Conditions (Hand Solder): | 350°C/6s |
| Materials | |
| Shell and Rocker: | Nylon 6.6 |
| Illuminated Rocker: | Polycarbonate |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
| |
| Panel Cut-out |
| Panel Thickness | X | Y |
| [mm] | [mm] | [mm] |
| 0,75...2,50 | 30,0...30,1 | 11,0...11,1 |
| ||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
 15: 16 (4)A, 250Vac, T125, 10A 400Vac T125  20A 277Vac, 250Vac 1,5hp, 125Vac 1hp 100°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
