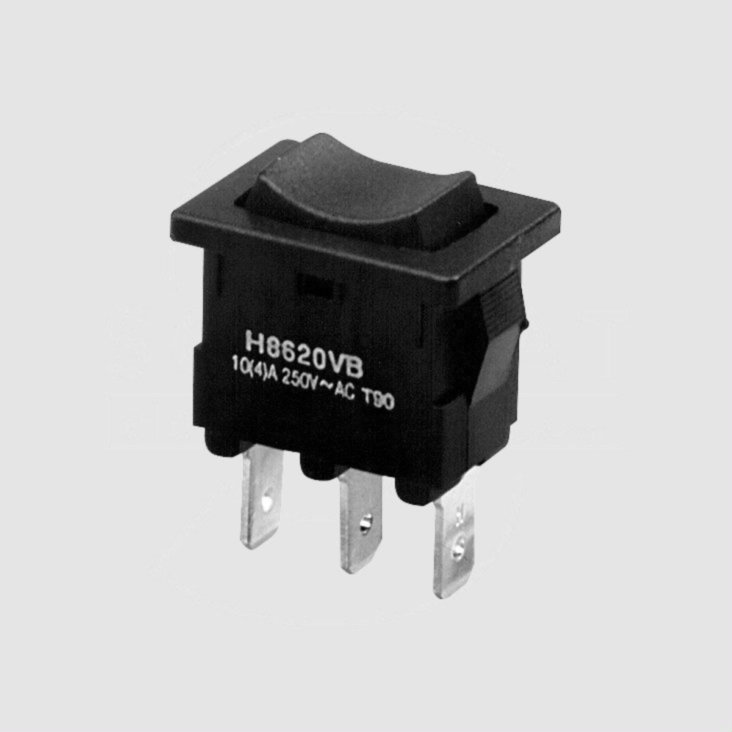

Vippeafbryder 1xON/OFF/ON 10A
Varenummer:
88-430
Varekode:
H8620VB
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: E2118
ARCOLECTRIC Rocker Switches
Series: 8620
Panel Cut-out: 13x19mm
Inrush Current: 25A
| Features |
| • For 13x19mm Panel cut-outs • With connector 4,8x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Impress | H8620VB | On-Off-On | Black | Black | - | |||||
|
||||||||||||||
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Operating Voltage, Max.: | 250V AC | Switching Current, Max.: | 10A | Switching Current at Inductive Load, Max.: | 4A | Ambient Temperature, Max.: | 90°C | Insulation Resistance: | >20MW | Contact Resistance | (New State, 12V DC/1A): | 100mW | Contact Opening Width: | 3mm | Soldering Conditions (Hand Solder): | 350°C/6s | Materials | Shell and Rocker: | Nylon 6.6 | Current-carrying Part: | Cu Alloy | Contacts: | Silver-plated | Flamability Class: | UL94V2 | ||||
|
|||||||||||||||||||||||||||||
| Panel Cut-out |
| Panel Thickness | X | Y | [mm] | [mm] | [mm] | 0,75...1,24 | 19,1...19,2 | 12,9 | 1,25...1,99 | 19,3...19,4 | 12,9 | 2,00...3,00 | 19,7...19,8 | 12,9 | |||
|
|||||||||||||||||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
 15: 10 (4)A, 250Vac, T90  15A 277V 250Vac 1/2hp, 125Vac 1/4hp 90°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
Stregkode:
259-6604
Intern reference:
88430
Varekode:
H8620VB
