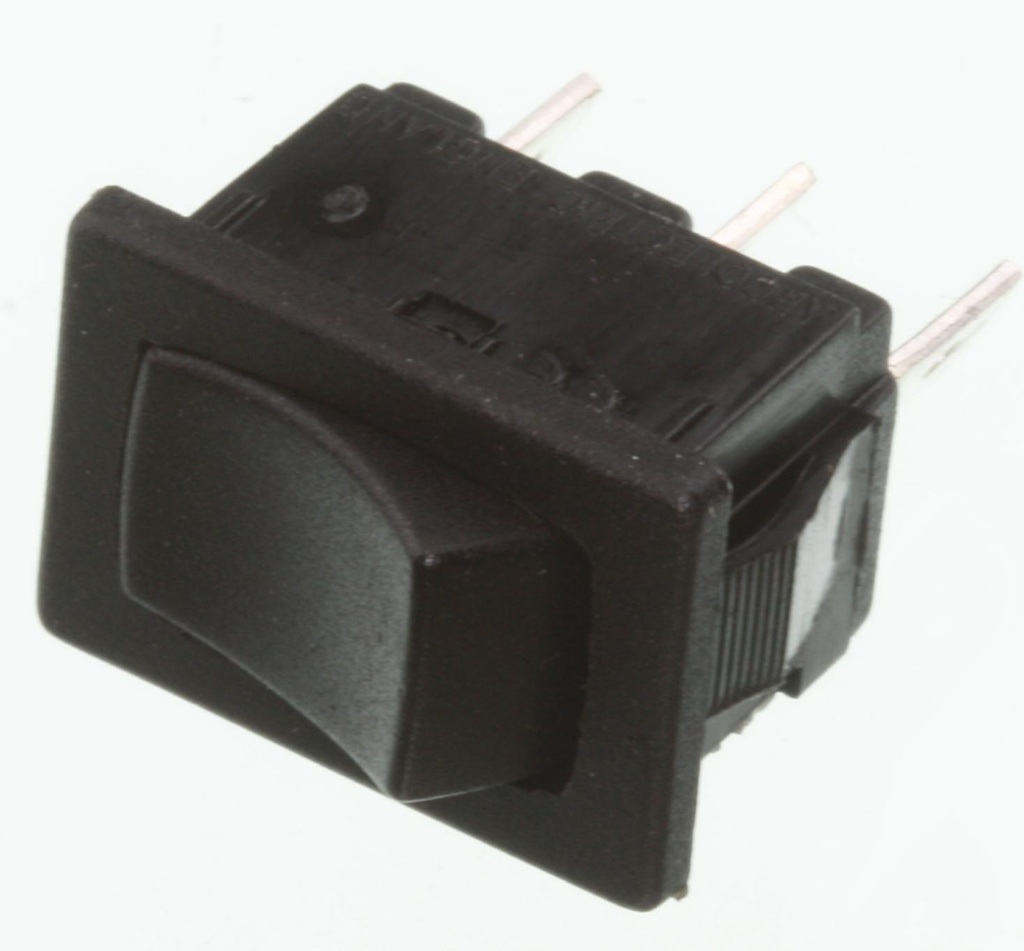

Vippeafbryder 1xON/ON 6A
Varenummer:
88-425
Varekode:
H8610VB
Vægt:
0 g
Lagerstatus:
Lager: 18 stk.
| Features |
| • For 13x19mm panel cut-outs • 1-pole version • With connector 4,8x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Impress | H8600VB | 1 x On/Off | Black | Black | - | H8600VB01 | 1 x On/Off | Black | Black | I/O | H8610VB | 1 x On/On | Black | Black | - | H8610VB01 | 1 x On/On | Black | Black | I/II | |||||
|
|||||||||||||||||||||||||||||
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||||
| Operating Voltage, Max.: | 250V AC | Switching Current, Max. | H8600_: | 10A | H8610_: | 6A | Switching Current at Inductive Load, Max. | H8600_: | 4A | H8610_: | 1A | Inrush Current (EN61058-1): | 25A | Ambient Temperature, Max.: | 90°C | Insulation Resistance: | >20MW | Contact Resistance | (New State, 12V DC/1A): | 100mW | Contact Opening Width: | 3mm | Soldering Conditions (Hand Solder): | 350°C/6s | Materials | Shell and Rocker: | Nylon 6.6 | Current-carrying Part: | Cu Alloy | Contacts: | Silver-plated | Flammability Class: | UL94V2 | ||||||
|
|||||||||||||||||||||||||||||||||||||||
| Panel Cut-out |
| Panel Thickness | X | Y | [mm] | [mm] | [mm] | 0,75...1,24 | 19,1...19,2 | 12,9 | 1,25...1,99 | 19,3...19,4 | 12,9 | 2,00...3,00 | 19,7...19,8 | 12,9 | |||
|
|||||||||||||||||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
H8600_: 15: 10 (4)A, 250Vac, T90  16A 250V, 10A 277VH8610_: 15: 6 (1)A, 250Vac, T90 10A 277V 65°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
Stregkode:
319-944
Intern reference:
88425
