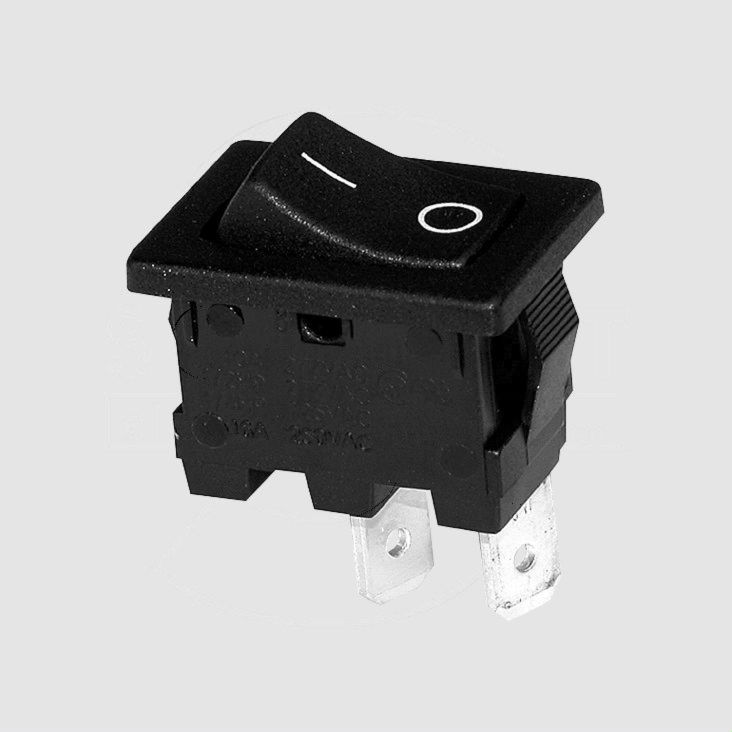

Vippeafbryder 1xON/OFF 10A mrkt: o-
Varenummer:
88-424
Varekode:
H8600VB01
Vægt:
10 g
Lagerstatus:
Lager: 1 stk.
Gruppe:
E2112
ARCOLECTRIC Rocker Switches
Series: 8600
Panel Cut-out: 13x19mm
Inrush Current: 25A
ARCOLECTRIC Rocker Switches
Series: 8600
Panel Cut-out: 13x19mm
Inrush Current: 25A
| Features |
| • For 13x19mm panel cut-outs • 1-pole version • With connector 4,8x0,8mm |
 |
| Selection Table |
| Part Nr. | Function | Shell | Rocker | Impress |
| H8600VB | 1 x On/Off | Black | Black | - |
| H8600VB01 | 1 x On/Off | Black | Black | I/O |
| H8610VB | 1 x On/On | Black | Black | - |
| H8610VB01 | 1 x On/On | Black | Black | I/II |
| ||||
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max. | |
| H8600_: | 10A |
| H8610_: | 6A |
| Switching Current at Inductive Load, Max. | |
| H8600_: | 4A |
| H8610_: | 1A |
| Inrush Current (EN61058-1): | 25A |
| Ambient Temperature, Max.: | 90°C |
| Insulation Resistance: | >20MW |
| Contact Resistance | |
| (New State, 12V DC/1A): | 100mW |
| Contact Opening Width: | 3mm |
| Soldering Conditions (Hand Solder): | 350°C/6s |
| Materials | |
| Shell and Rocker: | Nylon 6.6 |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
| |
| Panel Cut-out |
| Panel Thickness | X | Y |
| [mm] | [mm] | [mm] |
| 0,75...1,24 | 19,1...19,2 | 12,9 |
| 1,25...1,99 | 19,3...19,4 | 12,9 |
| 2,00...3,00 | 19,7...19,8 | 12,9 |
| ||
| Note |
| You will find suitable flat receptacles in product group F1315. |
|
| Approvals |
H8600_: 15: 10 (4)A, 250Vac, T90  16A 250V, 10A 277VH8610_: 15: 6 (1)A, 250Vac, T90 10A 277V 65°C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
