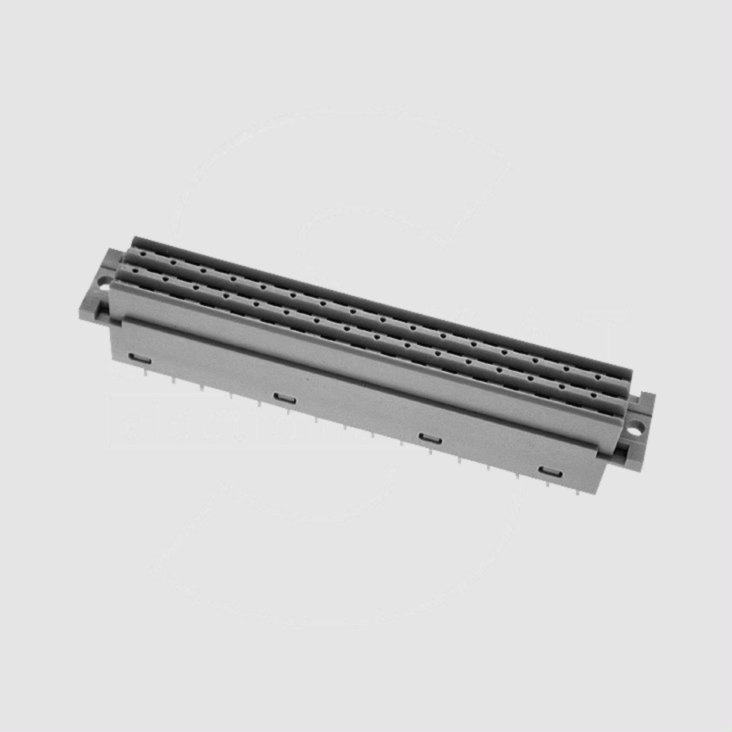

Female D+Z 32-Pole
Varenummer:
88-337
Varekode:
FL32F-G
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
F5185
CONEC Female Connectors DIN 41.612
Series: FL_-G, FL_-L
Straight Solder Pins or Solder Lugs
Type: F
Pitch: 5,08mm
CONEC Female Connectors DIN 41.612
Series: FL_-G, FL_-L
Straight Solder Pins or Solder Lugs
Type: F
Pitch: 5,08mm
| Technical Specifications |
 | |
| Insulation Shell: | Polycarbonate |
| Contact Material: | Copper Alloy |
| Mating and Withdraw Force | |
| 32-Pole: | 50N |
| 48-Pole: | 75N |
| Air Distance: | ³1,6mm |
| Creepage Distance: | ³3mm |
| Operating Voltage: | 125V AC1) |
| Test Voltage Ueff | |
| Contact/Contact: | 1550V |
| Contact/Mass: | 2550V |
| Operating Current at Ambient Temperature | |
| +20°C: | 5,5A |
| +70°C: | 4A |
| +100°C: | 2,5A |
| Contact Resistance: | £15mW |
| Insulation Resistance: | ³1011W |
| Temperature Range: | -55 ...+125°C |
| Class: | 3 (³50 Cycles) |
| 1)Insulation Group C | |
| |
| Construction |
| Part Nr. | Nr. of Poles | Assembly | P |
| [mm] | |||
| FL32F-G | 32 | d + z | 5,08 |
| FL48F-G | 48 | d + b + z | 5,08 |
| FL32F-L | 32 | d + z | 5,08 |
| FL48F-L | 48 | d + b + z | 5,08 |
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces Articles in bold print in stock, other articles available on request, delivery time approx. 4 weeks. |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
88337
Intern reference:
88337
Varekode:
FL32F-G
