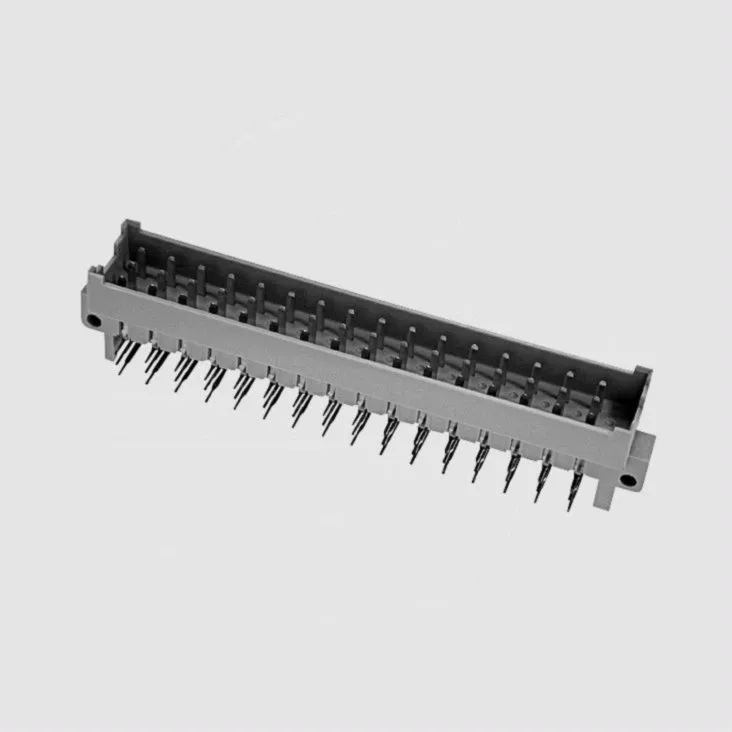

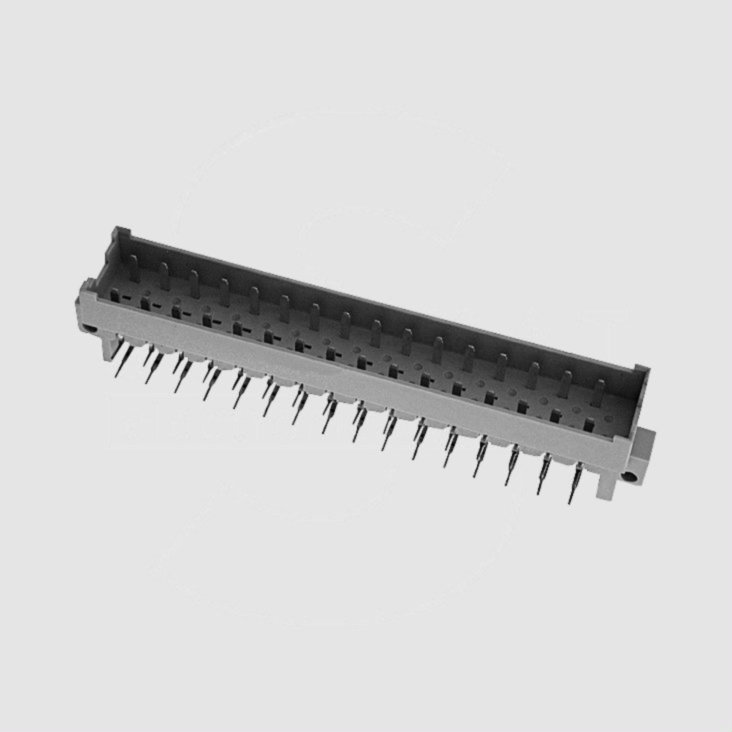

Male D+B+Z 48-Pole
Varenummer:
88-336
Varekode:
SL48F-W
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
F5181
CONEC Male Connectors DIN 41.612
Series: SL_-W
Angled Solder Pins
Type: F
Pitch: 2,54mm, 5,08mm
CONEC Male Connectors DIN 41.612
Series: SL_-W
Angled Solder Pins
Type: F
Pitch: 2,54mm, 5,08mm
| Technical Specifications |
 | |
| Insulation Shell: | Polycarbonate |
| Contact Material: | Copper Alloy |
| Mating and Withdraw Force | |
| 32-Pole: | 50N |
| 48-Pole: | 75N |
| Air Distance: | ³1,6mm |
| Creepage Distance: | ³3mm |
| Operating Voltage: | 125V AC1) |
| Test Voltage Ueff | |
| Contact/Contact: | 1550V |
| Contact/Mass: | 2550V |
| Operating Current at Ambient Temperature | |
| +20°C: | 5,5A |
| +70°C: | 4A |
| +100°C: | 2,5A |
| Contact Resistance: | £15mW |
| Insulation Resistance: | ³1011W |
| Temperature Range: | -55 ...+125°C |
| Class: | 3 (³50 Cycles) |
| 1) Insulation Group C | |
| |
| Construction |
| Part Nr. | Nr. of Poles | Assembly | P |
| [mm] | |||
| SL32F-W | 32 | d + z | 5,08 |
| SL48F-W | 48 | d + b + z | 2,54 |
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Stregkode:
88336
Intern reference:
88336
Varekode:
SL48F-W
