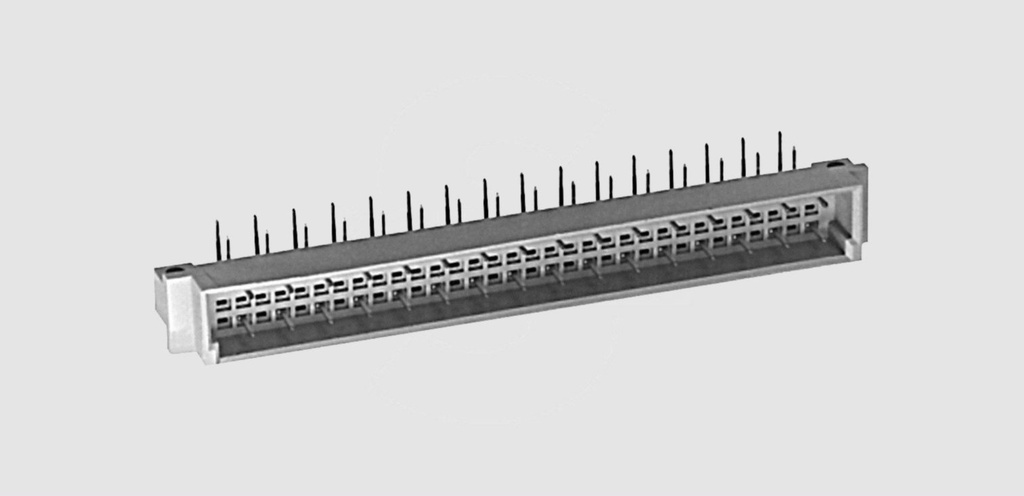

Male A+C Pitch=5,08 32-Pole
Varenummer:
88-327
Varekode:
SL32P
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
F5152
CONEC Male Connectors DIN 41.612
Series: SL_P
Angled Solder Pins
Type: C
Pitch: 2,54mm, 5,08mm
CONEC Male Connectors DIN 41.612
Series: SL_P
Angled Solder Pins
Type: C
Pitch: 2,54mm, 5,08mm
| Technical Specifications |
 | |
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) |
| Contact Material: | Copper Alloy |
| Contact Surface (Class 3): | Hard Gold |
| Mating and Withdraw Force | |
| 32-Pole: | £30N |
| 64-Pole: | £60N |
| 96-Pole: | £90N |
| Air and Creepage: | ³1,2mm |
| Operating Voltage: | 250V AC1) |
| Test Voltage Ueff (Contact/Contact): | 1kV |
| Operating Current at Ambient Temperature | |
| +20°C: | 2A |
| +70°C: | 1A |
| +100°C: | 0,5A |
| Contact Resistance: | £20mW |
| Insulation Resistance: | ³1011W |
| Temperature Range: | -55...+125°C |
| Class: | 3 = 50 Cycles |
| 1) Insulation Group A, VDE 0110 | |
| |

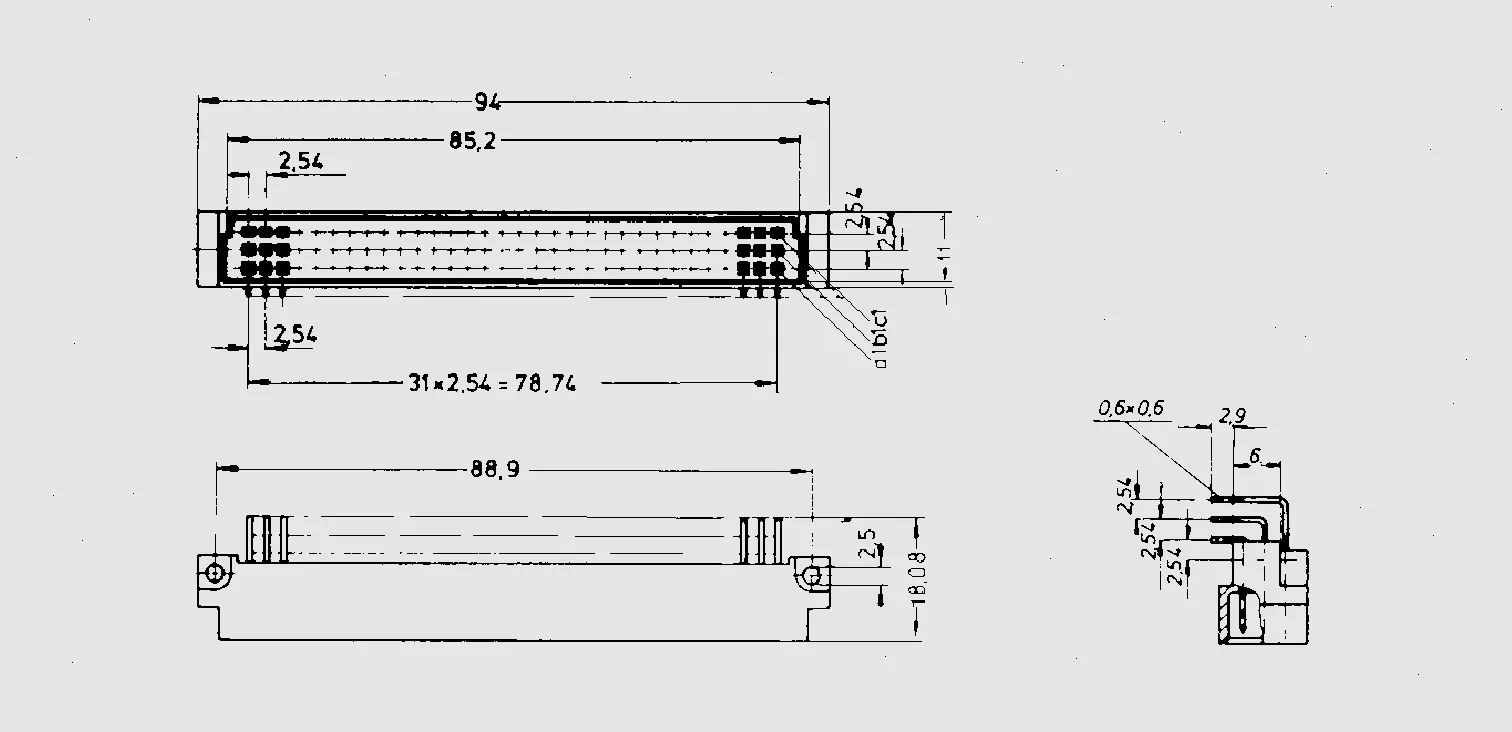

| Construction |
| Part Nr. | Nr. of Poles | Assembly | P |
| [mm] | |||
| SL32P | 32 | a + c | 5,08 |
| SL64P | 64 | a + c | 2,54 |
| SL96P | 96 | a + b + c | 2,54 |
| |||
| Note |
| • SL32P is only suitable for CF32TG and FL32P, see product groups F5154 and F5155. |
|
| Additional Products |
| Class 1 and 2 available on request, delivery time approx. 4 weeks |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
