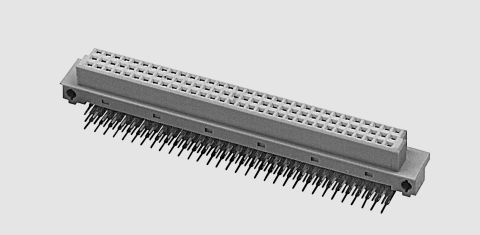

Female A+B+C Pitch2,54 96-Pole
Varenummer:
88-326
Varekode:
RF96RW
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
F5173
APFEL Female Connectors DIN 41.612
Series: RF RW
Angled Solder Pins
Type: R
Pitch: 2,54mm
APFEL Female Connectors DIN 41.612
Series: RF RW
Angled Solder Pins
Type: R
Pitch: 2,54mm
| Technical Specifications |
 | |
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) |
| Contact Material | |
| Male Connector: | Brass |
| Female Connector: | Copper Alloy |
| Contact Surface | |
| Plug-in Side: | Gold Over Nickel |
| Solder Side: | Tin-plated |
| Mating and Withdraw Force, Max. | |
| 32-Pole: | 30N |
| 64-Pole: | 60N |
| 96-Pole: | 90N |
| Air and Creepage, Min.: | 1,2mm |
| Operating Voltage: | 250V AC |
| Test Voltage | |
| Between Contacts: | 1000VRMS |
| Between Contacts and Shell: | 1550VRMS |
| Rated Current | |
| 20°C: | 2A |
| 70°C: | 1A |
| 100°C: | 0,5A |
| Contact Resistance: | £20mW |
| After 400 Transmission Cycles: | £40mW |
| Insulation Resistance | |
| Between Adjacent Contacts (100VAC): | ³1012W |
| Temperature Range: | -55...+125°C |
| Class: | 3 |
| |
| Construction |
| Part Nr. | Nr. of Poles | Assembly | P |
| [mm] | |||
| RF64RW | 64 | a + c | 2,54 |
| RF96RW | 96 | a + b + c | 2,54 |
| |||
| Approvals |
 E149341 (250V, 2A) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.apfel.com |
|
Stregkode:
88326
Intern reference:
88326
Varekode:
RF96RW
