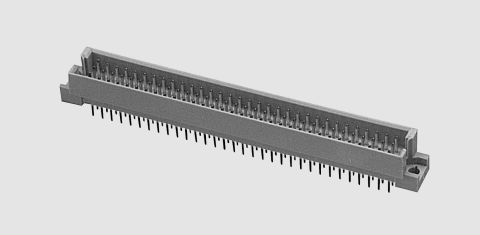

Male A+B+C Pitch2,54 96-Pole
Varenummer:
88-324
Varekode:
RM96TW
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: F5171
APFEL Male Connectors DIN 41.612
ERNI Male Connector 414412
Series: RM TW
Straight Solder Pins
Type: R
Pitch: 2,54mm
| Technical Specifications |
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Insulation Shell: | Glass Filled Polyamide (PBT), (UL94V-0) | Contact Material | Male Connector: | Brass | Female Connector: | Copper Alloy | Contact Surface | Plug-in Side: | Gold Over Nickel | Solder Side: | Tin-plated | Mating and Withdraw Force | 64-Pole: | £60N | 96-Pole: | £90N | Air and Creepage: | ³1,2mm | Operating Voltage: | 250V AC | Test Voltage | Between Contacts: | 1000VRMS | Between Contacts and Shell: | 1550VRMS | Rated Current | 20°C: | 2A | 70°C: | 1A | 100°C: | 0,5A | Contact Resistance: | £20mW | After 400 Transmission Cycles: | £40mW | Insulation Resistance | Between Adjacent Contacts (100VAC): | ³1012W | Temperature Range: | -55...+125°C | Class: | 3 | ||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||

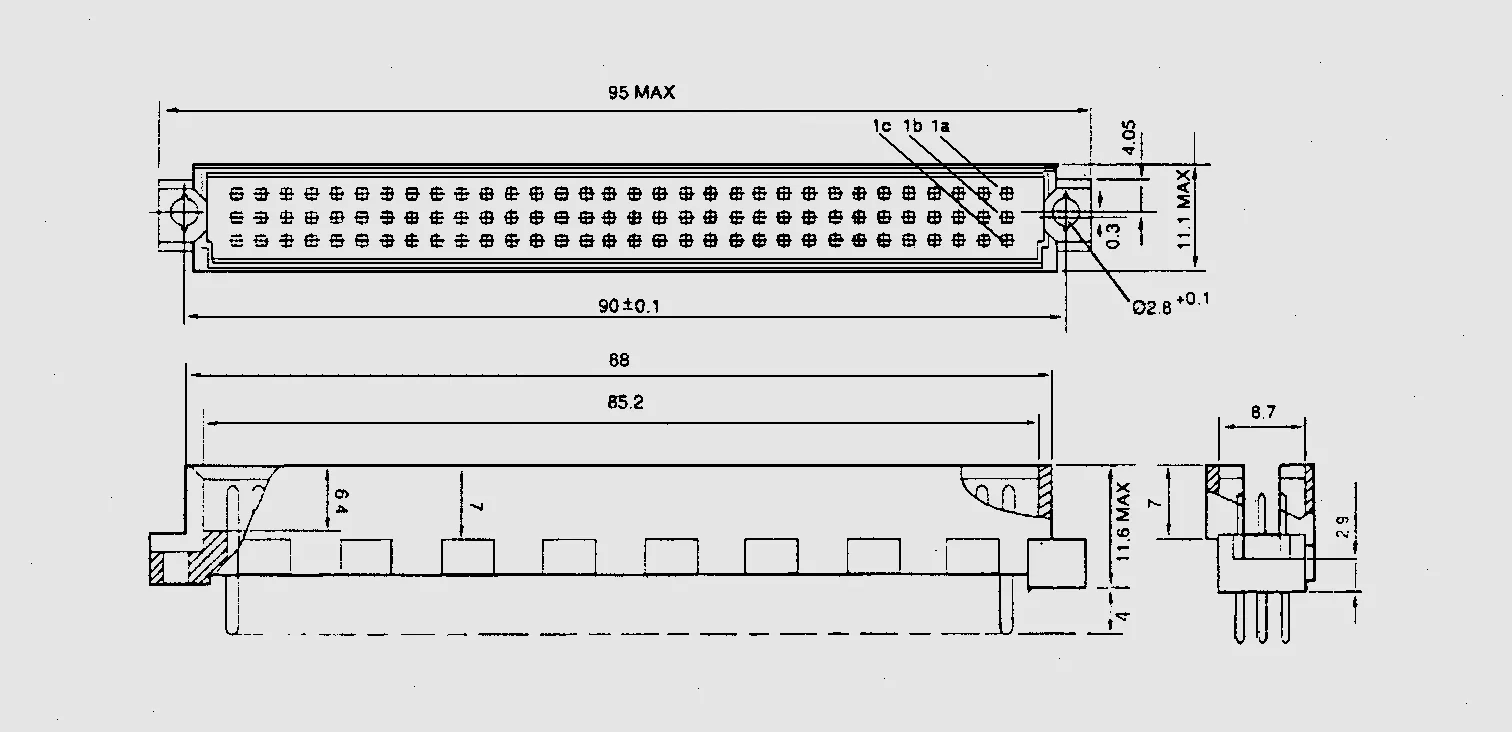

| Construction |
| Part Nr. | Nr. of Poles | Assembly | P | [mm] | RM64TW | 64 | a + c | 2,54 | RM96TW | 96 | a + b + c | 2,54 | |||||||
|
|||||||||||||||||||
| Approvals |
 E149341 (250V, 2A) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.apfel.com |
|
Stregkode:
88324
Intern reference:
88324
Varekode:
RM96TW
