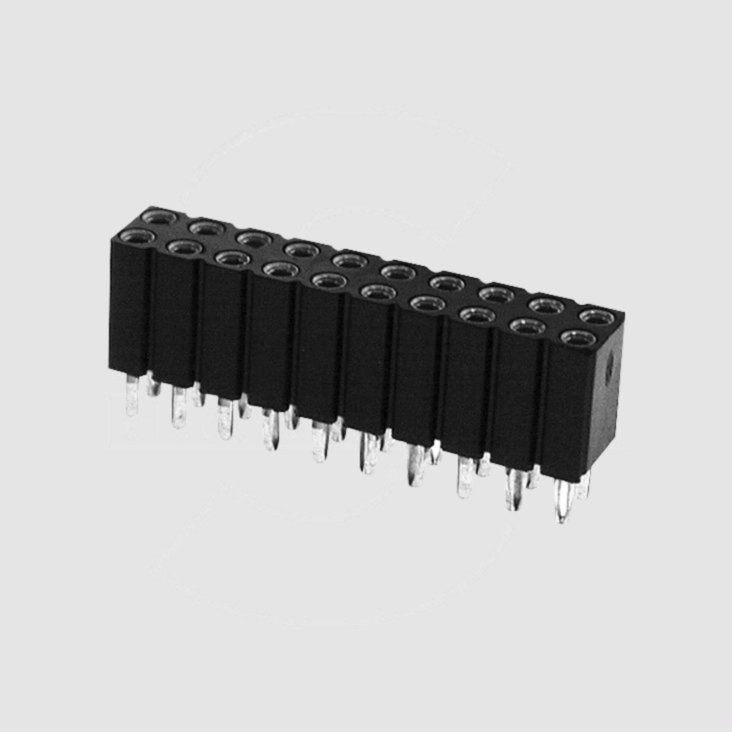

Prec.Female Header 2R Straight 72-Pole
Varenummer:
88-203
Varekode:
BL2X36PZ-P
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
F2881
MPE GARRY Precision Female Headers
Series: BL10, BL20
Press-In Single and Double Row, Straight
Height: 7,0mm
Pitch: 2,54mm
MPE GARRY Precision Female Headers
Series: BL10, BL20
Press-In Single and Double Row, Straight
Height: 7,0mm
Pitch: 2,54mm
| Features |
| • BL1X_: single row, 36 poles • BL2X_: double row, 72 poles • Selective gold-plated version • Suitable for square pins 0,635x0,635mm (1/40") |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material | |
| Solder Pin: | Brass |
| Clip: | Beryllium-Copper |
| Contact Surface: | 0,25µm Selective, Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250VRMS/250V DC |
| Dielectric Strength (1Min.): | 1000V AC |
| Temperature Range: | -55...+125°C |
| Solderability (IEC 68-2-20): | 260°C, 5s |
| |
| Dimensions |
| |
| H (Profile): | 7,0mm |
| C: | 2,8mm |
| Total Height: | 9,8mm |
| |
| Layout Data |
| |
| Drilling Dimensions: | 0,94 ... 1,09mm |
| Board Strength: | ³1,5mm |
| Pressure Contact | |
| Copper Layer: | 25µm |
| Tin Layer: | 12µm |
| Press-on Power, Min.: | 20N |
| Press-in Power, Max.: | 250N |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
88203
Intern reference:
88203
Varekode:
BL2X36PZ-P
