Pin Header 80-Pole Straight 2R Au
Varenummer:
88-166
Varekode:
SPH080MG
Vægt:
0 g
Lagerstatus:
Lager: 1 stk.
Gruppe: F2225
MPE GARRY Pin Header
Series: SPH

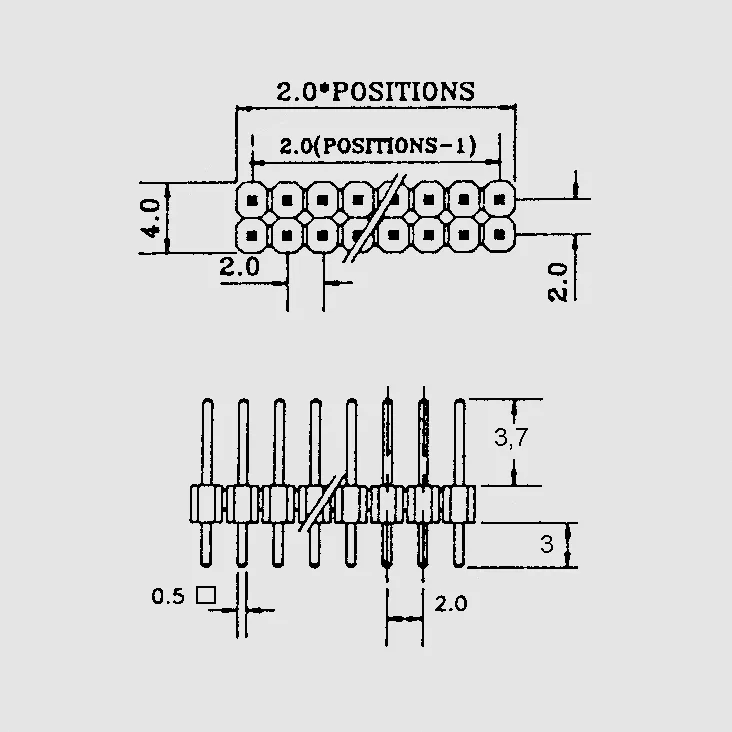

Double Row, Straight
Pitch: 2,00mm
MPE GARRY Pin Header
Series: SPH
Double Row, Straight
Pitch: 2,00mm
| Features |
| • Gold-plated version • Suitable for all types of PCB • High accuracy • Arbitrary mounting |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper alloy |
| Contact Surface: | Gold-plated selective |
| Rated Current: | 1,5A |
| Rated Voltage: | 150VRMS/V DC |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
88166
Intern reference:
88166
Varekode:
SPH080MG
