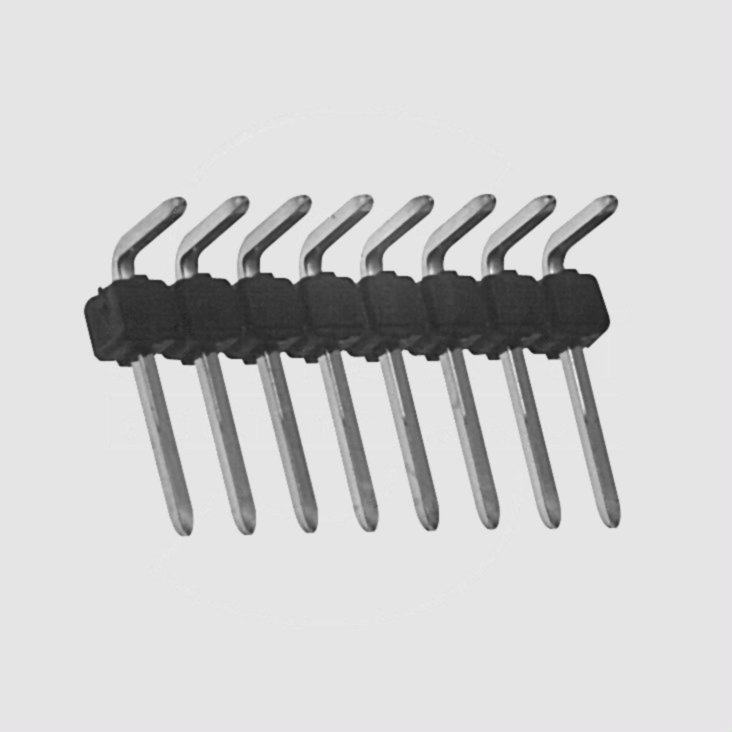

Pin Header 50-Pole Angled 1R Sn
Varenummer:
88-141
Varekode:
ASL050ZW
Vægt:
0 g
Lagerstatus:
Lager: 30 stk.
Gruppe:
F2317
MPE GARRY High-Quality Pin Headers
Series: STL1
Single Row, Angled
Pitch: 2,54mm
MPE GARRY High-Quality Pin Headers
Series: STL1
Single Row, Angled
Pitch: 2,54mm
| Features |
| • Tin-plated, part gold-plated or gold-plated design |
 |
| Technical Specifications |
| |
| Insulating Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper alloy |
| Contact Surface | |
| ASL050ZW: | Tin-plated |
| ASL050TGW: | Part Gold-plated |
| ASL050GW: | Gold-plated |
| Rated Current: | 3A |
| Rated Voltage: | 250V AC |
| Breakdown Voltage (1min.): | 500Vrms |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| Solderability: | IEC 68-2-20 Tb |
| |

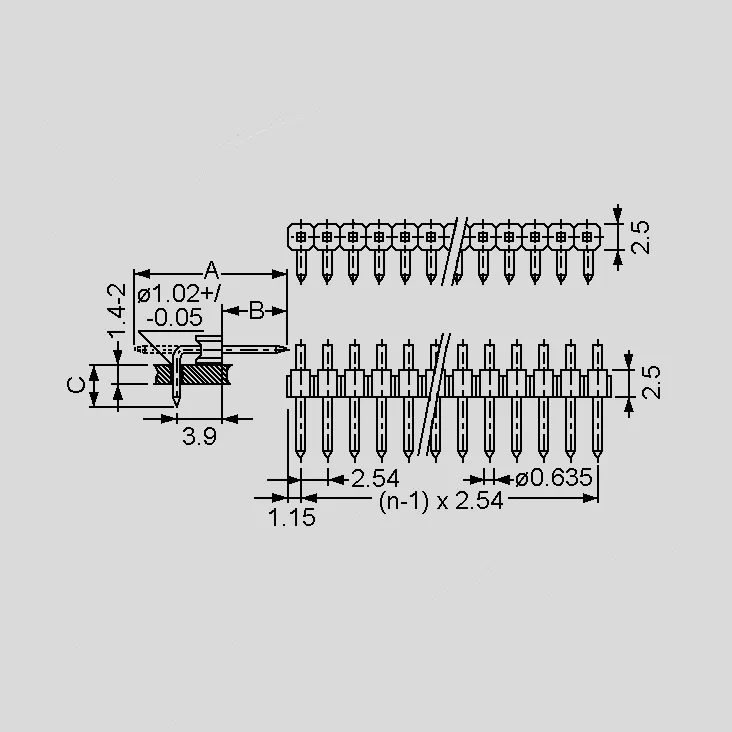

| Dimensions |
| |
| Pin Length, Complete (A): | 14,7mm |
| Pin Length, Plug-in Area (B): | 6,9mm |
| Pin Length, Solder Area (C): | 3,3mm |
| Pin Cross Section: | 0,635x0,635mm |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
88141
Intern reference:
88141
Varekode:
ASL050ZW
