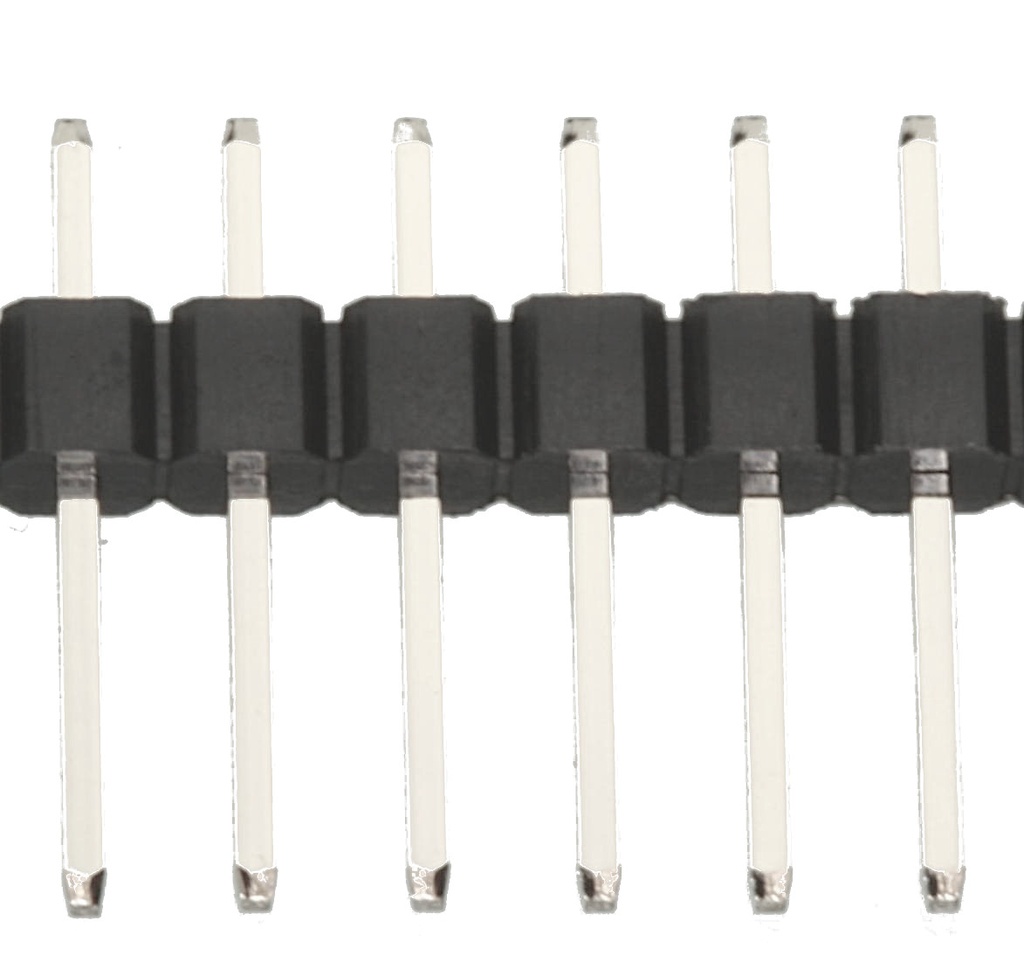

Pin Header 50-Pole Straight 1R Au
Varenummer:
88-140
Varekode:
ASL050G
Vægt:
0 g
Lagerstatus:
Lager: 70 stk.
Gruppe:
F2313
MPE GARRY High-Quality Pin Headers
Series: STL1
Single Row, Straight
Pitch: 2,54mm
| Features |
| • Tin-plated, part gold-plated or gold-plated design |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||
| Insulation Shell: | Thermoplastic, UL94V-0 | Contact Material (DIN17660): | Copper alloy | Contact Surface | ASL050Z: | Tin-plated | ASL050TG: | Part Gold-plated | ASL050G: | Gold-plated | Rated Current: | 3A | Rated Voltage: | 250V AC | Breakdown Voltage (1min.): | 500Vrms | Temperature Range: | -40...+105°C | Short Term (10s): | +260°C | Solderability: | IEC 68-2-20 Tb | |||
|
|||||||||||||||||||||||||
| Dimensions |
|
|||||||||
| Pin Length (A): | 12,6mm | Pin Length Plug-in Area (B): | 6,8mm | Pin Length Solder Area (C): | 3,3mm | Pin Cross Section: | 0,635x0,635mm | ||
|
|||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
aec4036e+e392+43b8+b5cf+ceaab069ce8c
Intern reference:
88140
Varekode:
ASL050G
