Pin Header 25-Pole Straight 1R Sn L=12,6mm.
Varenummer:
88-137
Varekode:
ASL025Z
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: F2331
MPE GARRY Pin Header
Series: STL1
Single Row, Straight
Pitch: 5,08mm
| Features |
| • Tin-plated version • Arbitrary mounting |
 |
| Technical Specifications |
|
|||||||||||||||||||
| Insulation Shell: | Thermoplastic, UL94V-0 | Contact Material (DIN17660): | Copper alloy | Contact Surface: | Tinned | Rated Current: | 3A | Rated Voltage: | 250V AC | Breakdown Voltage (1min.): | 500Vrms | Temperature Range: | -55...+125°C | Short Term (5s): | +260°C | Solderability: | IEC68-2-20 | ||
|
|||||||||||||||||||

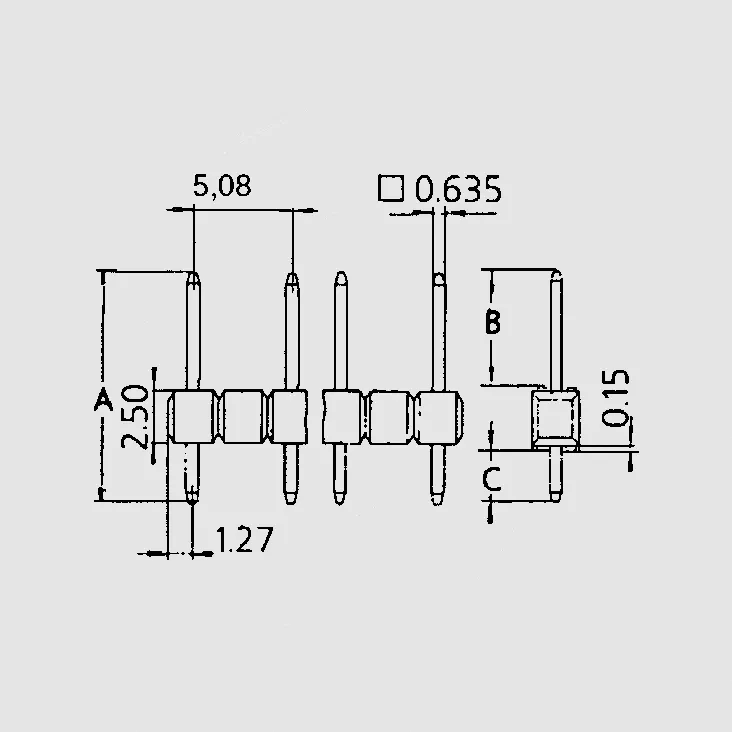

| Dimensions |
|
|||||||||
| Pin Length (A): | 12,6mm | Pin Length, Plug-in Area(B): | 6,8mm | Pin Length, Solder Area (C): | 3,3mm | Pin Cross Section: | 0,635x0,635mm | ||
|
|||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
88137
Intern reference:
88137
Varekode:
ASL025Z
