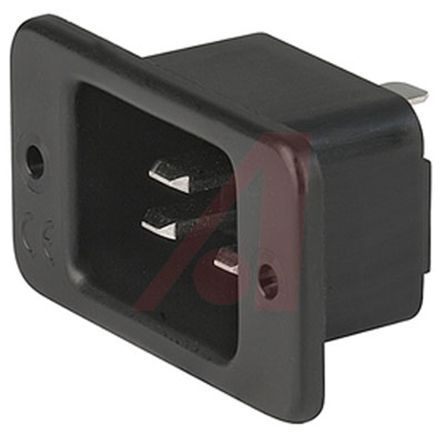

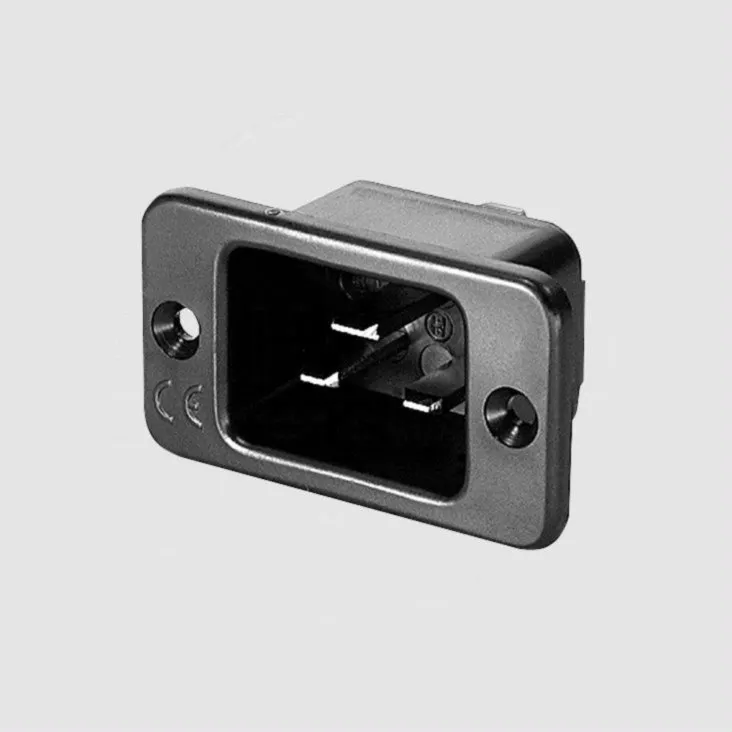

IEC Power Connector C20 , Spacing=42mm
Varenummer:
87-831
Varekode:
GST1621
Vægt:
20 g
Lagerstatus:
Lager: 9 stk.
Gruppe:
F5631
SCHURTER IEC Power Insert Connectors
Series: GST, GSD
Pin Temperature: 65°C
SCHURTER IEC Power Insert Connectors
Series: GST, GSD
Pin Temperature: 65°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2P + Earthing |
| Continuous Current: | 16A |
| Pin Temperature | 65°C |
| Rated Voltage: | 250V AC |
| Terminals: | 6,3x0,8mm |
| |
| GST1621 |
|
| Features |
| • Appliance plug, longitudinal flange, distance between fixing holes 42mm • Terminals via flat-cable plug 6,3mm |
|
| Approvals |
    |
|
| GSD5216 |
|
| Features |
| • Appliance socket, longitudinal flange, distance between fixing holes 45mm • Terminals via flat-cable plug 6,3mm |
|
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
Stregkode:
87831
Intern reference:
87831
Varekode:
GST1621
