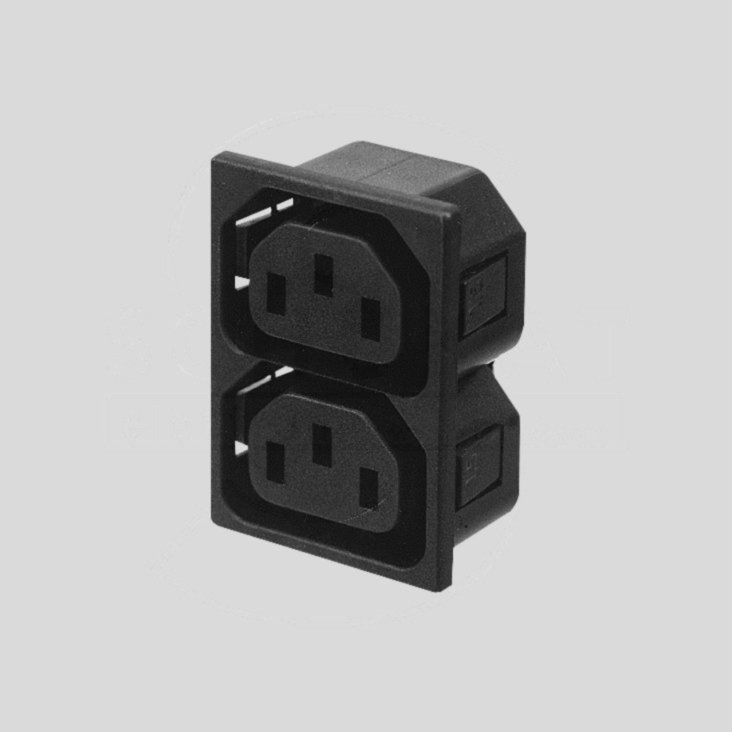

IEC C13 Combi, 2xJack, Snap-In
Varenummer:
87-830
Varekode:
GTK0-2A
Vægt:
30 g
Lagerstatus:
Lager: 1 stk.
Gruppe:
F5581
K+B IEC\Female Power Connectors
Series: GSD, GTK
Pin Temperature: 65°C
F5581
K+B IEC\Female Power Connectors
Series: GSD, GTK
Pin Temperature: 65°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A (UL,CSA:15A) |
| Pin Temperature: | 65°C |
| Rated Voltage: | 250V AC |
| |
| GSD4-_ |
|
| Features |
| • Appliance socket, longitudinal flange, distance between fixing holes 40mm • Screw terminals GSD4-4.8: 4,8mm GSD4-6.3: 6,3mm |
|
| Approvals |
   |
|
| GSD4SI, GSD4SI-6.3 |
|
| Features |
| • Appliance socket, snap-in assembly • Connection by GSD4SI: solder lug terminals GSD4SI-6.3: 6,3mm flat cable plug |
|
| Approvals |
| |
|
| GTK0-2A |
|
| Features |
| • Combination of • two appliance sockets • Solder-lug terminals • Snap-in panel |
|
| Dimensions |
| Type | L±0,2 | F+0,2 | |
| [mm] | [mm] | ||
| GTK0-2A | 51 | 48,3 | |
| |||
| Approvals |
| |
|
| Note |
| • You will find suitable flat receptacles for tabs 4,8mm in product group F1313. • You will find suitable flat receptacles for tabs 6,3mm in product group F1315. |
|
| Norms |
| EN60320 T2-2, standard sheet F |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.kb-connector.de |
|
Stregkode:
87830
Intern reference:
87830
Varekode:
GTK0-2A
