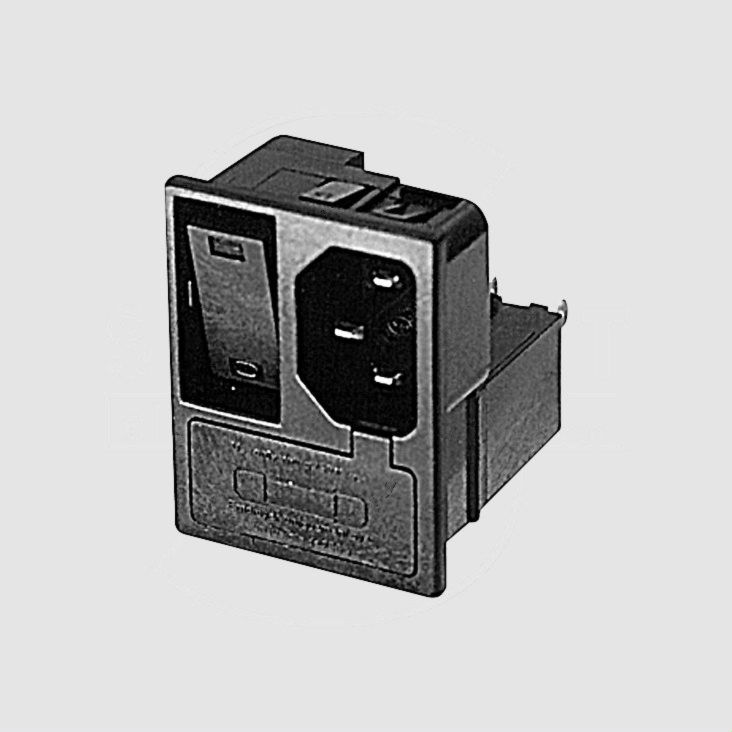

IEC C14 Power Connector Switch, 2xFuseholder
Varenummer:
87-825
Varekode:
GSW
Vægt:
50 g
Lagerstatus:
Lager: 31 stk.
Gruppe:
F5562
K+B IEC Male Power Insert Connectors
Series: GSW
With Rocker Switch and Fuseholder
Pin Temperature: 65°C
F5562
K+B IEC Male Power Insert Connectors
Series: GSW
With Rocker Switch and Fuseholder
Pin Temperature: 65°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A |
| Fuse Holder: | 6,3A |
| Pin Temperature: | 65°C |
| Rated Voltage: | 250V AC |
| |
| GSW |
|
| Features |
| • Combination consists of: - Appliance plug - 2-pole rocker switch - Fuse holder for one or two fuses (5x20mm or 6,3x32mm) • Connection by 4,8mm flat cable plug • Snap-in assembly |
|
| GSW101_ |
|
| Features |
| • Combination consists of: - Appliance plug - 2-pole rocker switch - Fuse holder for one fuse (5x20mm) • Connection by 4,8mm flat cable plug • GSW101_SI: Snap-in assembly |
|
| Selection Table |
| Part Nr. | Rocker | Imprint | Assembly | Front Plate |
| GSW_ | Thickness | |||
| [mm] | ||||
| 101SW | Black1) | I/O | Screw | - |
| 101RT | Red2) | I/O | Screw | - |
| 101SW-SI | Black1) | I/O | Snap-in | 1,5 |
| 101RT-SI | Red2) | I/O | Snap-in | 1,5 |
| 1) unilluminated, 2) illuminated | ||||
| ||||
| Note |
| • You will find suitable flat receptacles for tabs 4,8mm in product group F1313. • You will find suitable flat receptacles for tabs 6,3mm in product group F1315. • You will find fine-wire fuses 5x20mm in accordance with DIN41.571 at product group |
|
| Norms |
| EN60320, standard sheet C14 |
|
| Approvals |
GSW:   GSW101_: |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.kb-connector.de |
|
