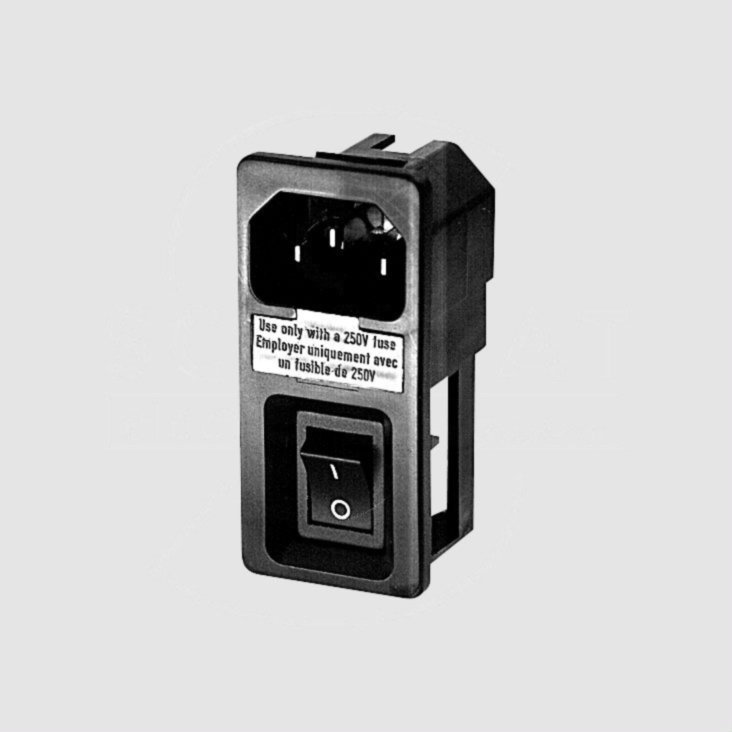

IEC C14 Power Connector Switch, Fuseh. Sn-In

Varenummer:
87-823
Varekode:
GSW6762SI
Vægt:
30 g
Lagerstatus:
Lager: 3 stk.

kr 63,00 63.0 DKK kr 63,00 Inklusiv moms

kr 63,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 59,06
v/25
Kr. 49,23
v/100
Kr. 39,38
v/1000
Kr. 29,54

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/49713/image_1920?unique=91e2051 https://elektroniklavpris.odoo.com/web/image/product.template/49713/image_1920?unique=91e2051
Gruppe:
F5561
SCHURTER IEC Male Power Insert Connectors
Series: GSW
With Rocker Switch and Fuseholder
Pin Temperature: 65°C
Technical Specifications
Nr. of Poles:
2+PE
Continuous Current:
10A
Fuse Holder:
6,3A
Pin Temperature:
65°C
Rated Voltage:
250V AC
GSW6762SI
Features
• Combination consists of:
- Appliance plug
- 2-pole rocker switch
- Fuse holder for a fuse 5x20mm and an integrated compartment for spare fuse
• Connection by 4,8mm flat cable plug
• Snap-in assembly
Norms
EN60320/IEC320, standard sheet C14
Approvals

GSW6762
Features
• Combination consists of:
- Appliance plug
- 2-pole rocker switch
- Fuse holder for a fuse 5x20mm and an integrated compartment for spare fuse
• Connection by 4,8mm flat cable plug
• Screw assembly, hole distance 40mm
Norms
EN60320/IEC320, standard sheet C14
Approvals

GSW6765
Features
• Combination consists of:
- Appliance plug
- 2-pole rocker switch
- Fuse holder for two fuses (5x20mm)
• Connection by 4,8mm flat cable plug (switch) solder terminals for fuse holder
• Screw assembly, hole distance 40mm
Norms
EN60320/IEC320, standard sheet C14
Approvals

Note
• You will find suitable flat receptacles for tabs 4,8mm in product group F1313.
• You will find suitable flat receptacles for tabs 6,3mm in product group F1315.
• You will find fine-wire fuses 5x20mm in accordance with DIN41.571 at product group E1415.
Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.schurter.de
