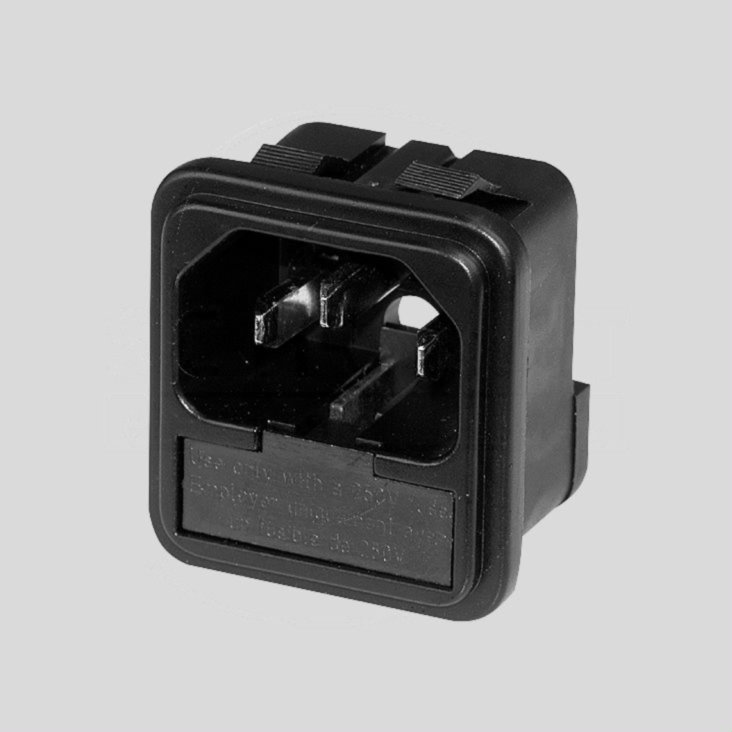

IEC C14 Power Connector Fuseholder, Snap-in
Varenummer:
87-821
Varekode:
GSI1064
Vægt:
20 g
Lagerstatus:
Lager: 8 stk.
Gruppe:
F5541
SCHURTER, K+B IEC Male Power Insert Connectors
Series: GSI
With Fuseholder
Pin Temperature: 65°C
F5541
SCHURTER, K+B IEC Male Power Insert Connectors
Series: GSI
With Fuseholder
Pin Temperature: 65°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2+PE |
| Continuous Current | |
| Plug: | 10A |
| Fuse Holder: | 6,3A |
| Pin Temperature: | 65°C |
| Rated Voltage: | 250V AC |
| |
| GSI-4.8, GSI-6.3 |
|
| Features |
| • Combination consists of: - Appliance plug - Fuse holder for a fuse (5x20mm) • Connection by flat cable plug: GSI-4.8: 4,8mm GSI-6.3: 6,3mm • Screw assembly, longitudinal flange, hole distance 36mm |
|
| Approvals |
   |
|
| GSI1064 |
|
| Features |
| • Combination consists of: - Appliance plug - Fuse holder for a fuse (5x20mm) with an integrated compartment for spare fuse • Connection N and PE by 4,8mm flat cable plug, solder terminals for fuse holder • Snap-in assembly |
|
| Approvals |
 |
|
| GSI-Q |
|
| Features |
| • Combination consists of: - Appliance plug - Fuse holder for a fuse (5x20mm) • Connection by 4,8mm flat cable plug • Screw assembly, transversal flange, hole distance 39mm |
|
| Approvals |
| |
|
| Note |
| • You will find suitable flat receptacles for tabs 4,8mm in product group F1313. • You will find suitable flat receptacles for tabs 6,3mm in product group F1315. • You will find fine-wire fuses 5x20mm in accordance with DIN41.571 at product group |
|
| Norms |
| EN60320, standard sheet C14 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
  |
| http://http://www.schurter.de http://www.kb-connector.de |
|
