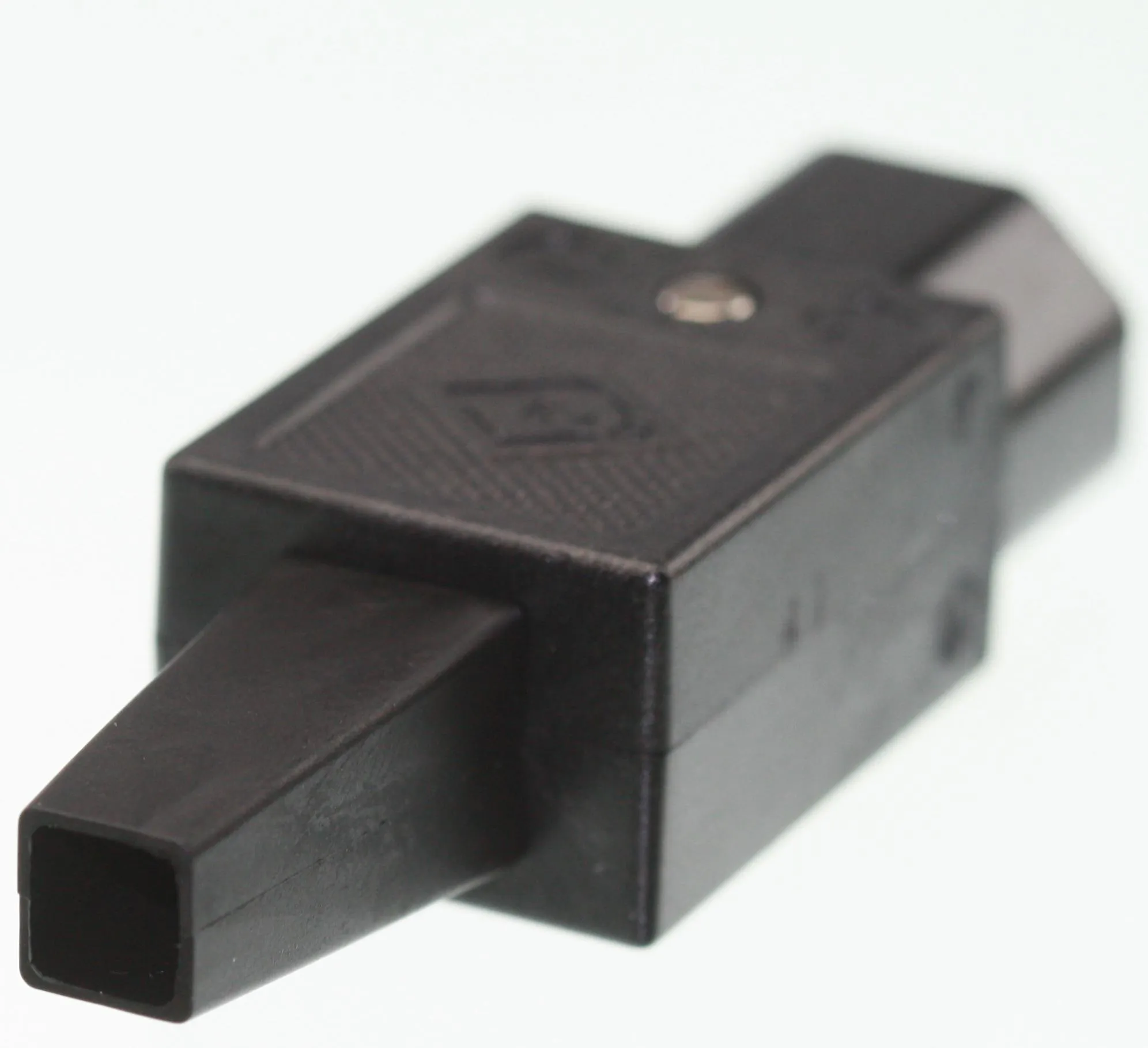

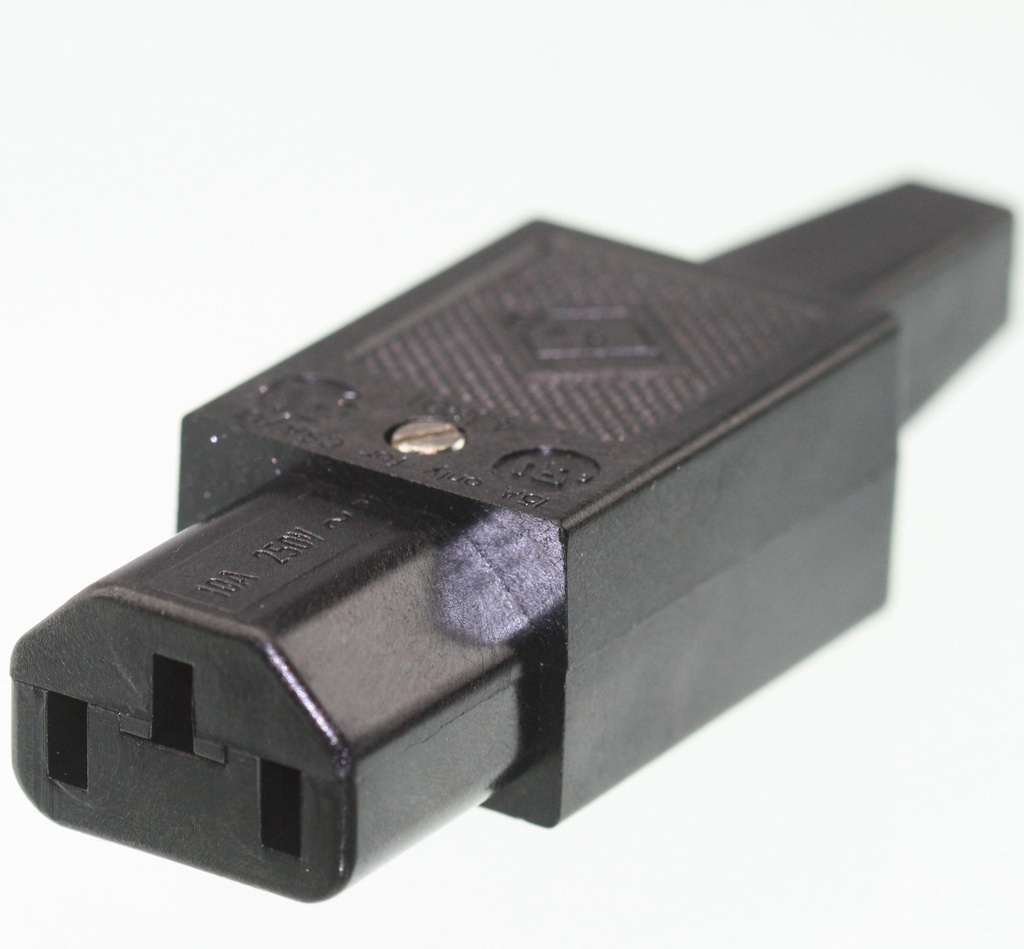

IEC Power Connector C13, Straight
Varenummer:
87-813
Varekode:
GST3G
Vægt:
20 g
Lagerstatus:
Lager: 15 stk.
Gruppe:
F5593
K+B, KAISER IEC Female Power Connectors
Series: GST
For Cable Assembly
Pin Temperature: 65°C
F5593
K+B, KAISER IEC Female Power Connectors
Series: GST
For Cable Assembly
Pin Temperature: 65°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A (UL, CSA: 15 A) |
| Pin Temperature: | 65°C |
| Rated Voltage: | 250V AC |
| |
| GST794SW |
|
| Features |
| • Line Socket • Straight type • Central cable inlet |
|
| Approvals |
       |
|
| GST3G |
|
| Features |
| • Line Socket • Straight type • Central cable inlet |
|
| Approvals |
  |
|
| GST3 |
|
| Features |
| • Line Socket • Angled type • Central cable inlet |
|
| Approvals |
| |
|
| GST790 |
|
| Features |
| • Line Socket • Angled type • Side cable inlet |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
  |
| http://www.kb-connector.de http://www.martin-kaiser.de |
|
Stregkode:
87813
Intern reference:
87813
Varekode:
GST3G
