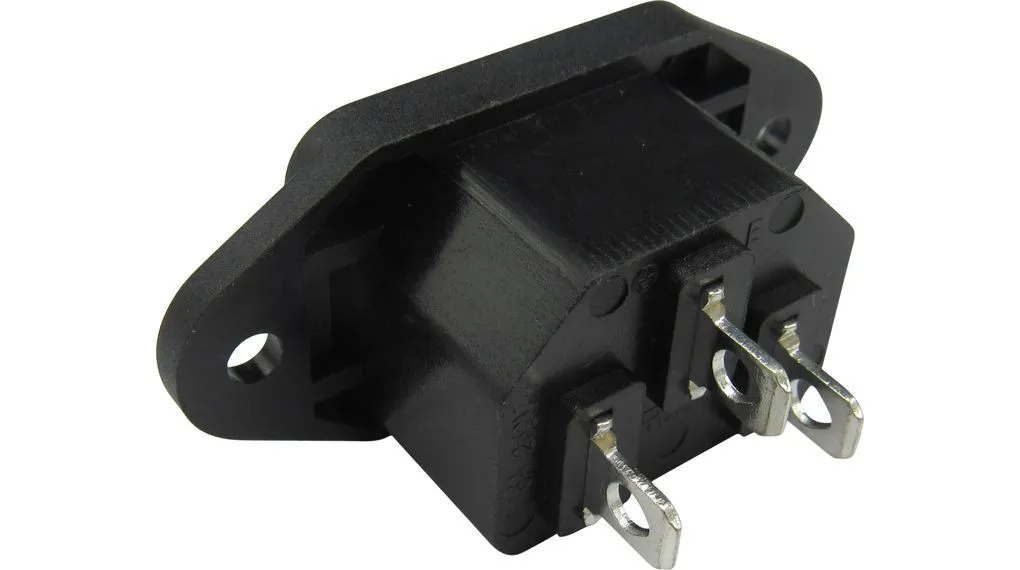

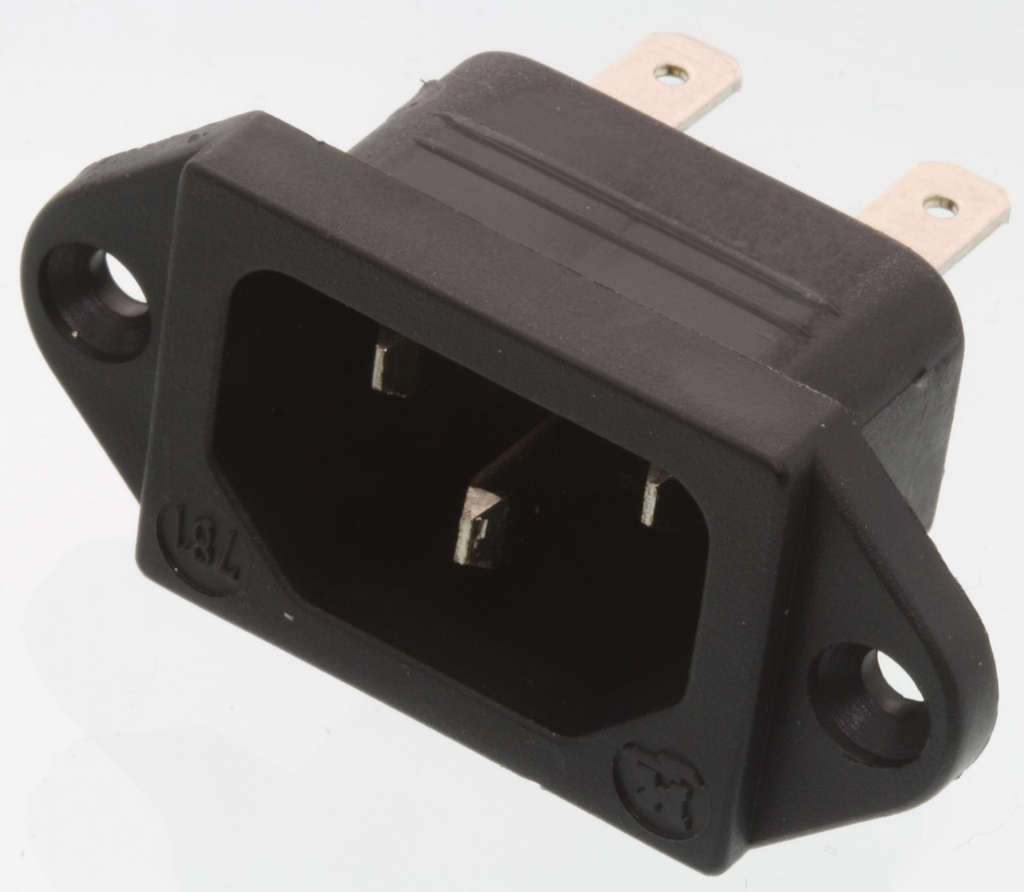

IEC C14 Power Connector, Spacing=40mm 4,8mm.
Varenummer:
87-809
Varekode:
GSD781
Vægt:
10 g
Lagerstatus:
Lager: 80 stk.
Gruppe:
F5511
SCHURTER, K+B, KAISER IEC Male Power Insert Connectors
Series: GSD
Pin Temperature: 65°C
| Technical Specifications |
 |
|
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A (UL, CSA: 15 A) |
| Pin Temperature: | 65°C |
| Rated Voltage: | 250V AC |
|
|
| GSD336-_ |
|
| Features |
| • CEE mains appliance plug, longitudinal flange, distance between fixing holes 36mm • Screw terminal GSD336-4.8: 4,8mm GSD336-6.3: 6,3mm |
|
| Norms |
| EN60320/IEC320, standard sheet C14 |
|
| Approvals |
   |
|
| GSD781 |
|
| Features |
| • CEE mains appliance plug, longitudinal flange, distance between fixing holes 40mm • Screw terminal 4,8mm |
|
| Norms |
| EN60320/IEC320 |
|
| Approvals |
     |
|
| GSD340-6.3 |
|
| Features |
| • CEE mains appliance plug, longitudinal flange, distance between fixing holes 40mm • Screw terminal 6,3mm |
|
| Norms |
| EN60320/IEC320, standard sheet C14 |
|
| Approvals |
| |
|
| GSD3SI |
|
| Features |
| • CEE mains appliance plug, snap-in-assembly • Screw terminal 6,3mm • For panel thickness 1,0...3,2mm variable |
|
| Approvals |
 |
|
| GSD42R65-1611 |
|
| Features |
| • CEE mains appliance plug, longitudinal flange, distance between fixing holes 40,1mm • PCB assembly, pitch 7,0mm, pins 1,5mm Ø |
|
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
  |
Stregkode:
87809
Intern reference:
87809
Varekode:
GSD781
