Term.Block 250V 2x2-Pole gn
Varenummer:
87-610
Varekode:
AKZ370/2
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
F9378
PTR Double Row Terminal Blocks
Series: AK370
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
PTR Double Row Terminal Blocks
Series: AK370
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 2,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,5mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

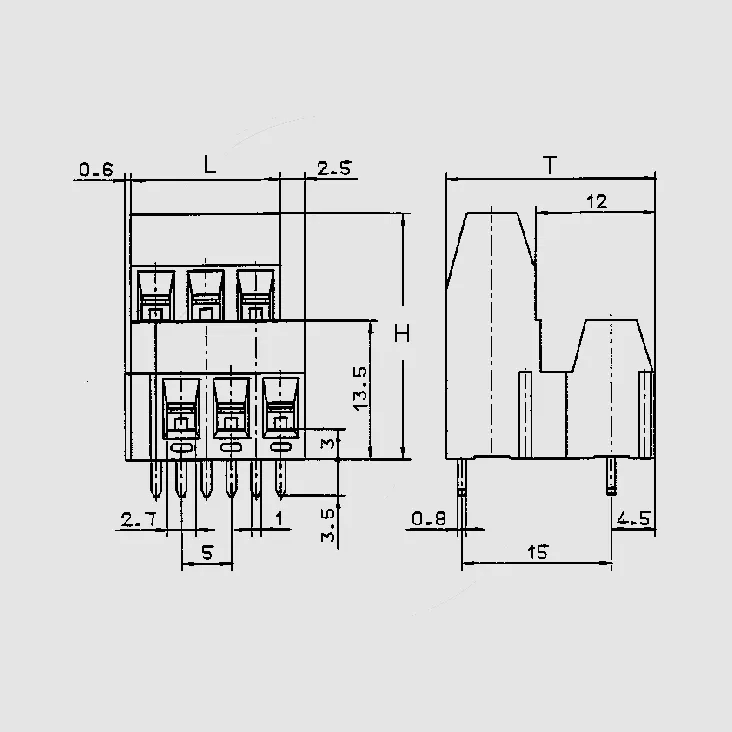

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AKZ370/2 | 10 | 24,1 | 21 |
| AKZ370/3 | 15 | 24,1 | 21 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Stregkode:
87610
Intern reference:
87610
Varekode:
AKZ370/2
