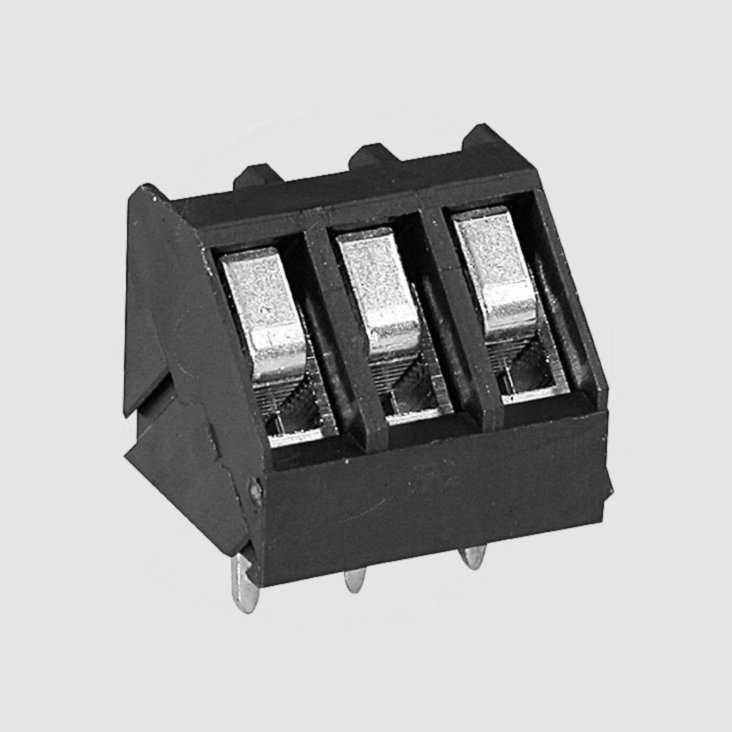

Term.Block 250V 3-Pole 45° Grey
Varenummer:
87-609
Varekode:
ARK300/3
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F9371
PTR Terminal Blocks
Series: AK300
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
PTR Terminal Blocks
Series: AK300
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 2,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,5mm2 |
| Stripped Length: | 7,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30°C ...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Dark Grey |
| |

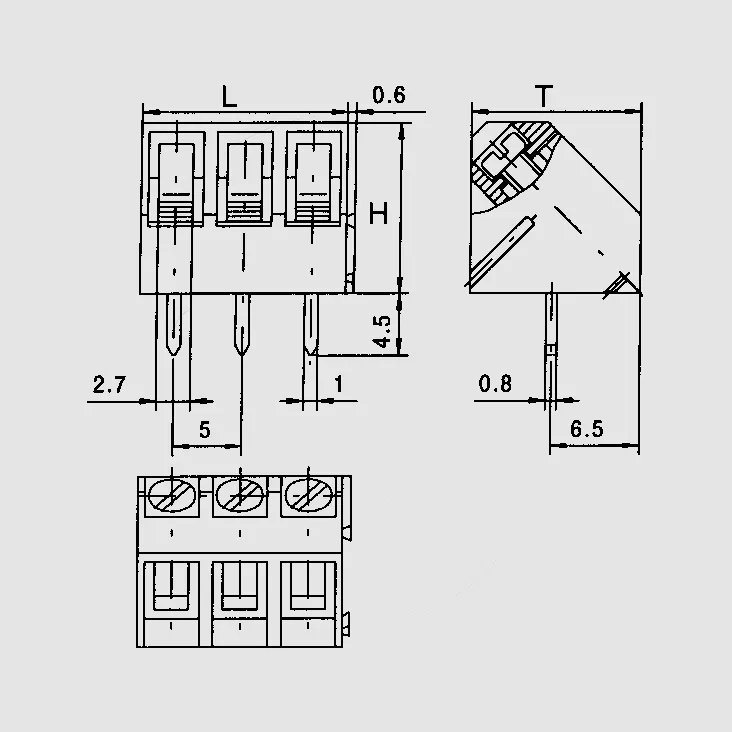

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK300/2 | 10,0 | 12,5 | 12,5 |
| ARK300/3 | 15,0 | 12,5 | 12,5 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Stregkode:
87609
Intern reference:
87609
Varekode:
ARK300/3
