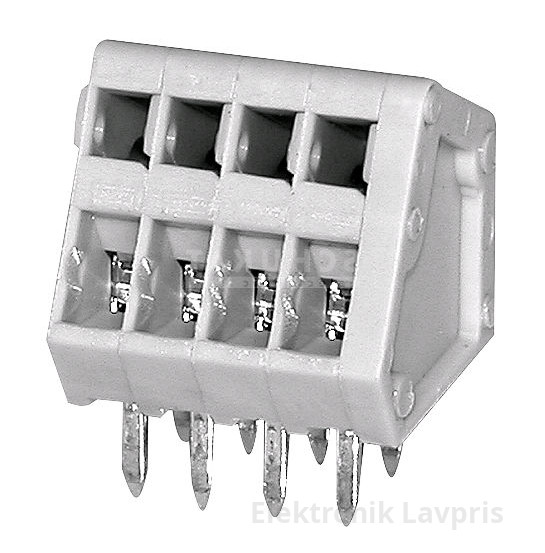

Spring Terminal Block 130V 4-Pole Grey
Varenummer:
87-582
Varekode:
AK3191/4
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F9151
PTR Spring Force Terminals
Series: AK3191
Without Lever
Conductor: Horizontal
Pitch: 2,5mm
PTR Spring Force Terminals
Series: AK3191
Without Lever
Conductor: Horizontal
Pitch: 2,5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 130V AC |
| Rated Current (T60): | 9A |
| Test Voltage: | 1,25kV |
| Rated Cross Section Single Stranded Wire: | 0,5mm2 |
| Rated Cross Section Fine Stranded Wire: | On Request |
| Stripped Length: | 5,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Pebble Grey |
| |
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AK3191/2 | 7,08 | 11,6 | 12,2 |
| AK3191/3 | 9,62 | 11,6 | 12,2 |
| AK3191/4 | 12,16 | 11,6 | 12,2 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Stregkode:
87582
Intern reference:
87582
Varekode:
AK3191/4
