Spadestik 4,8x0,8mm hun 1,0mm Brass
Varenummer:
87-504
Varekode:
FH48X08M1
Vægt:
0 g
Lagerstatus:
Lager: 474 stk.
Gruppe: F1313
FCI, VOGT Flat Receptacles
Series: FH48X
For Crimping
Width: 4,8mm
| Features |
| • Flat receptacles for crimping • Made of brass, some parts with coloured PVC sleeve • In accordance with DIN46245 T2 and DIN46247 T2 |
 |
| Technical Specifications |
| Part Nr. | qRated | Fitting to | Material/ | [mm2] | Plug | Surface | FH48X05M1-L | 0,5...1,0 | 4,8x0,5 | CuZn | FH48X05RT | 0,5...1,0 | 4,8x0,5 | CuZn/Sn | FH48X05BL | 1,0...2,5 | 4,8x0,5 | CuZn/Sn | FH48X08M1 | 0,5...1,0 | 4,8x0,8 | CuZn | FH48X08M1-L | 0,5...1,0 | 4,8x0,8 | CuZn | FH48X08RT | 0,5...1,0 | 4,8x0,8 | CuZn/Sn | FH48X08BL | 1,0...2,5 | 4,8x0,8 | CuZn/Sn | |||||
| _RT = Red Protective Sleeve, _BL = Blue Protective Sleeve, qRated = Crimping Conductor Cross Section, CuZn = Brass, CuZn/Sn = Brass, Tin-plated | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||

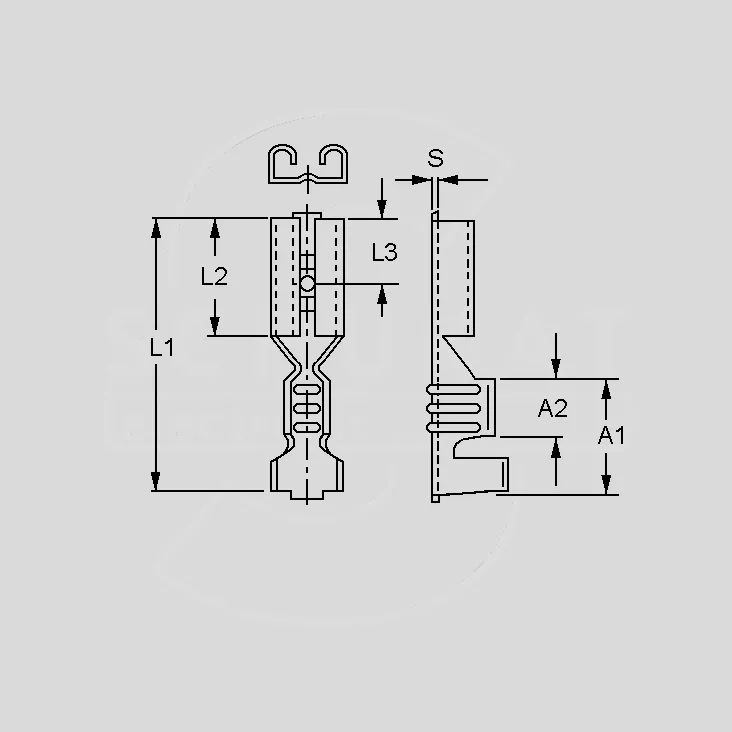

| Dimensions |
| Part Nr. | A1 | A2 | L1 | L2 | L3 | s | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | FH48X05M1-L | 6,7 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 | FH48X05RT | - | - | 18,0 | 6,0 | - | 0,35 | FH48X05BL | - | - | 18,0 | 6,0 | - | 0,35 | FH48X08M1 | 6,0 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 | FH48X08M1-L | 6,7 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 | FH48X08RT | - | - | 18,0 | 6,0 | - | 0,35 | FH48X08BL | - | - | 18,0 | 6,0 | - | 0,35 | ||||||||
| s = Material Strength | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable crimping tools in our red "Components and Devices" catalogue at product group T4611, part EWZ230C (for non-insulated flat tabs and flat receptacles) or EWZ301 (for insulated flat tabs and flat receptacles). |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
FCI,  |
| http://www.vogt.ch |
|
