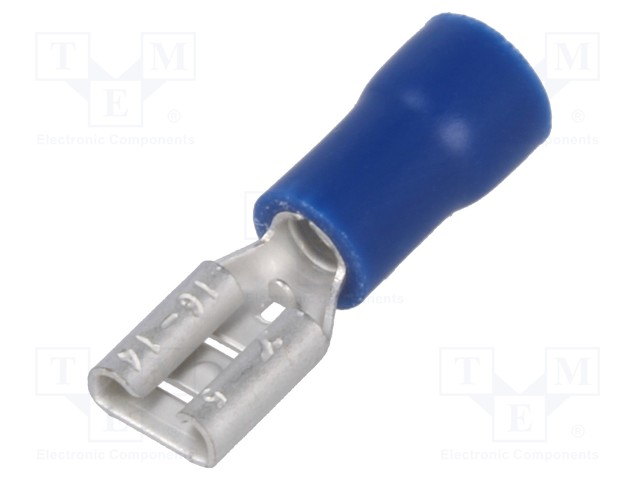

Spadestik 4,8x0,5 blå hun 2,5mm
Varenummer:
87-503
Varekode:
FH48X05BL
Vægt:
0 g
Lagerstatus:
Lager: 408 stk.
Features
| • Flat receptacles for crimping • Made of brass, some parts with coloured PVC sleeve or tinned (see table) • In accordance with DIN46245 T2 and DIN46247 T2 |
 |
| Technical Specifications |
| Part Nr. | qRated | Fitting to | Material/ |
| [mm2] | Plug | Surface | |
| FH48X05M1-L | 0,5...1,0 | 4,8x0,5 | CuZn |
| FH48X05RT | 0,5...1,0 | 4,8x0,5 | CuZn/Sn |
| FH48X05BL | 1,0...2,5 | 4,8x0,5 | CuZn/Sn |
| FH48X08M1 | 0,5...1,0 | 4,8x0,8 | CuZn/Sn |
| FH48X08M1-L | 0,5...1,0 | 4,8x0,8 | CuZn |
| FH48X08RT | 0,5...1,0 | 4,8x0,8 | CuZn/Sn |
| FH48X08BL | 1,0...2,5 | 4,8x0,8 | CuZn/Sn |
| _RT = Red Protective Sleeve, _BL = Blue Protective Sleeve, qRated = Crimping Conductor Cross Section, CuZn = Brass, CuZn/Sn = Brass, Tin-plated | |||
|
|||
| Dimensions |
| Part Nr. | A1 | A2 | L1 | L2 | L3 | s |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| FH48X05M1-L | 6,7 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 |
| FH48X05RT | - | - | 18,0 | 6,0 | - | 0,35 |
| FH48X05BL | - | - | 18,0 | 6,0 | - | 0,35 |
| FH48X08M1 | 6,0 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 |
| FH48X08M1-L | 6,7 | 3,4 | 15,6 | 6,0 | 3,8 | 0,35 |
| FH48X08RT | - | - | 18,0 | 6,0 | - | 0,35 |
| FH48X08BL | - | - | 18,0 | 6,0 | - | 0,35 |
| s = Material Strength | ||||||
Stregkode:
87503
Intern reference:
87503
Varekode:
FH48X05BL
