Rainbow Flat Cable 40 Wire
Varenummer:
87-358
Varekode:
FBK28-40RB
Vægt:
2420 g
Lagerstatus:
Ikke på lager
Gruppe:
G1837
KLASING PVC Flat Cables
Series: FBK_RB
Cross-Section: AWG28

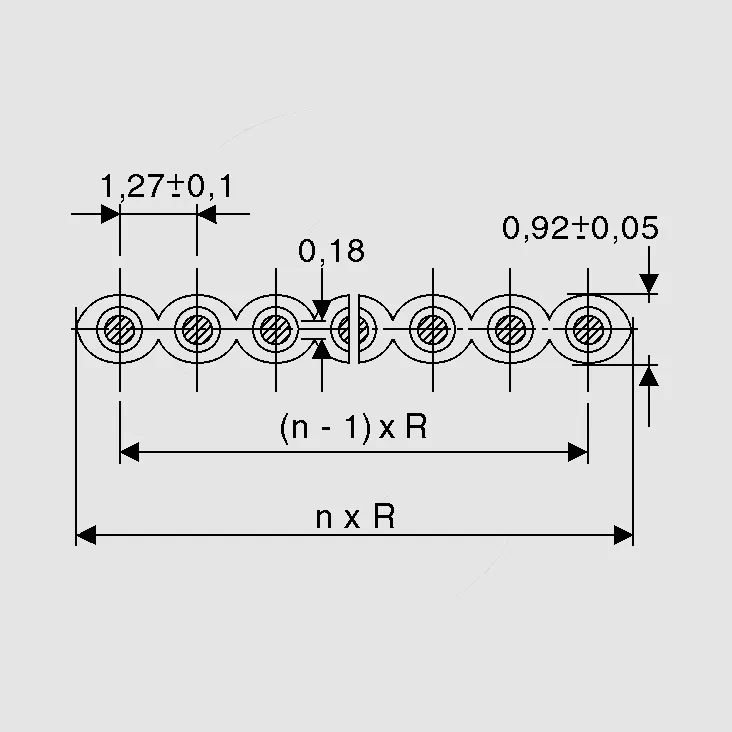

Pitch: 1,27mm
Colour: Rainbow
KLASING PVC Flat Cables
Series: FBK_RB
Cross-Section: AWG28
Pitch: 1,27mm
Colour: Rainbow
| Features |
| Double extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch 1,27mm, rainbow, PVC insulation, self-extinguishing, colour sequence according to IEC |
 |
| Technical Specifications |
| |
| Temperature Range: | -20...+80°C |
| Rated Voltage: | 300V |
| Rated Current: | 1A |
| Test Voltage: | 2000V |
| Insulation Resistance: | >20MW*km |
| Capacitance (@1MHz): | 53pF/m |
| Impedance: | 108W |
| Crosstalk, Near (@1MHz): | 33dB |
| Crosstalk, Far (@1MHz): | 45dB |
| |
| Approvals |
 2480 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 30,5m on unireel |
|
| Manufacturer |
| Klasing http://www.klasing-kabel.de |
|
Stregkode:
87358
Intern reference:
87358
Varekode:
FBK28-40RB
