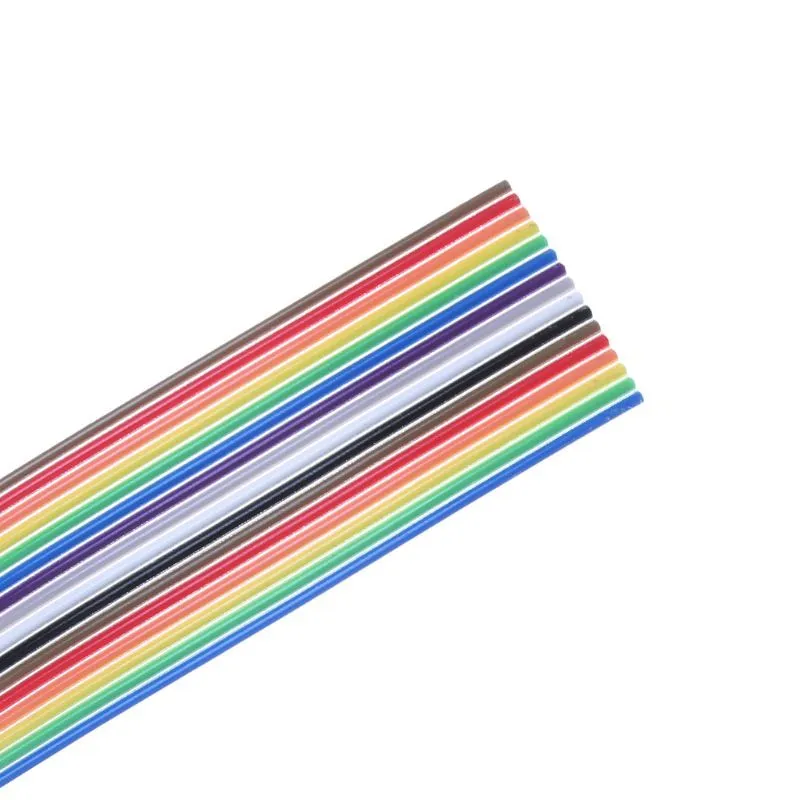

Rainbow Flat Cable 16 Wire
Varenummer:
87-350
Varekode:
FBK28-16RB
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe: G1837
KLASING PVC Flat Cables
Series: FBK_RB
Cross-Section: AWG28
Pitch: 1,27mm
Colour: Rainbow
| Features |
| Double extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch 1,27mm, rainbow, PVC insulation, self-extinguishing, colour sequence according to IEC |
 |
| Technical Specifications |
|
|||||||||||||||||||
| Temperature Range: | -20...+80°C | Rated Voltage: | 300V | Rated Current: | 1A | Test Voltage: | 2000V | Insulation Resistance: | >20MW*km | Capacitance (@1MHz): | 53pF/m | Impedance: | 108W | Crosstalk, Near (@1MHz): | 33dB | Crosstalk, Far (@1MHz): | 45dB | ||
|
|||||||||||||||||||
| Approvals |
 2480 |
|
| Terms of Delivery |
| Maufacturer |
| Klasing http://www.klasing-kabel.de |
|
Stregkode:
87350
Intern reference:
87350
Varekode:
FBK28-16RB
