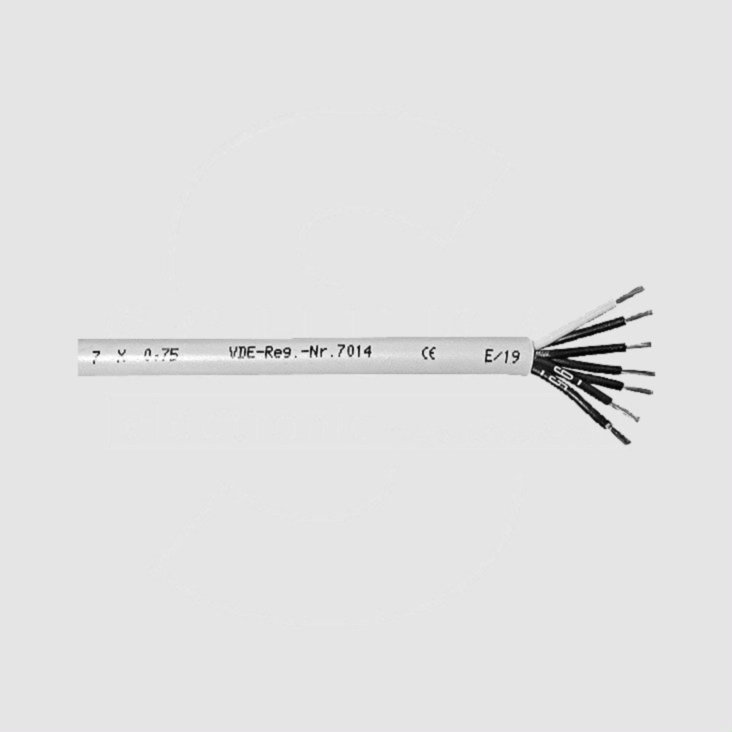

Control Cable 7x0,75mm²
Varenummer:
87-304
Varekode:
YSLY7X075
Vægt:
110 g
Lagerstatus:
Ikke på lager
| Features |
| • PVC insulated finely stranded wire with Cu strands according to VDE 0295 class 5/IEC Cl.5 • Conductor and jacket with PVC insulation • Conductor marked with white identification digits |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 300V/500V |
| Test Voltage: | 4000V |
| Conductor Cross-Section: | 0,75mm2 |
| Outer Diameter | |
| 3-Wire: | 5,8mm |
| 5-Wire: | 6,9mm |
| 7-Wire: | 7,5mm |
| 12-Wire: | 10,1mm |
| Conductor Composition: | 24x0,195mm |
| Colour of Jacket: | Silver-Grey (RAL 7001) |
| Temperature Range Moving: | -5...+70°C |
| Temperature Range Fixed Installation: | -30...+70°C |
| Flammability: | Flame Resistant IEC332.1 |
Stregkode:
87304
Intern reference:
87304
Varekode:
YSLY7X075
