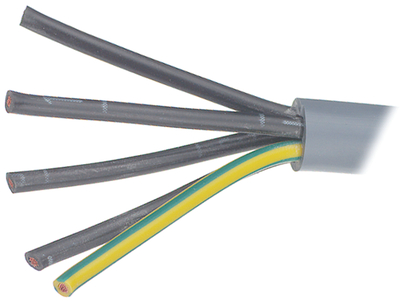

Styrekabel 5x0,75mm², grå
Varenummer:
87-303
Varekode:
YSLY5X075
Vægt:
80 g
Lagerstatus:
Lager: 227 stk.
Gruppe: G1451
XBK PVC Control Cables
Series: YSLY
Cross-Section: 0,75mm2
Colour: Grey
Features
| • PVC insulated finely stranded wire with Cu strands according to VDE 0295 class 5/IEC Cl.5 • Conductor and jacket with PVC insulation • Conductor marked with white identification digits |
| Technical Specifications |
| Rated Voltage: | 300V/500V |
| Test Voltage: | 4000V |
| Conductor Cross-Section: | 0,75mm2 |
| Outer Diameter | |
| 3-Wire: | 5,8mm |
| 5-Wire: | 6,9mm |
| 7-Wire: | 7,5mm |
| 12-Wire: | 10,1mm |
| Conductor Composition: | 24x0,195mm |
| Colour of Jacket: | Silver-Grey (RAL 7001) |
| Temperature Range Moving: | -5...+70°C |
| Temperature Range Fixed Installation: | -30...+70°C |
| Flammability: | Flame Resistant IEC332.1 |
 |
|
| Manufacturer |
 |
Stregkode:
87303
Intern reference:
87303
Varekode:
YSLY5X075
