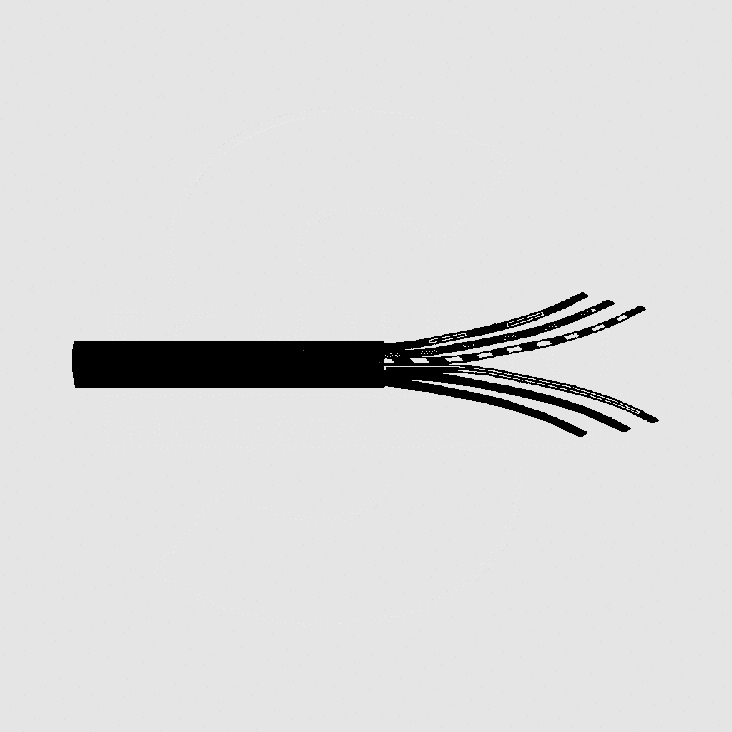

Skærmet kabel 4x0,14mm² Grå
Varenummer:
87-295
Varekode:
LIYCY0414
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
G1433
KLASING PVC Control Cables
Series: LIYCY
Twisted, Shielded
Cross-Section: 0,14mm2
Colour: Grey
G1433
KLASING PVC Control Cables
Series: LIYCY
Twisted, Shielded
Cross-Section: 0,14mm2
Colour: Grey
| Features |
 | |
| Screening, Cu Plaited, Tinned: | 85% |
| Conductor Insulation: | PVC YI 2 |
| Conductor Colours: | DIN 47 100 |
| Conductor Composition: | 18x0,10mm |
| Outer Jacket: | PVC YM 2 |
| Colour: | Grey (RAL 7032) |
| Flammability: | Flame Resistant IEC332.1 |
| |
| Technical Specifications |
| |
| Rated Voltage: | 300V |
| Test Voltage: | >1,5kV |
| Temperature Range Moving: | -10...+70°C |
| Temperature Range Stationary: | -30...+80°C |
| Insulation Resistance, Min.: | 20MWxkm |
| Conductor Resistance, Max.: | 135W/km |
| |
| Part Nr. | Cross-Section | OuterØ |
| [mm2] | [mm] | |
| LIYCY0414 | 4x0,14 | 4,00 ±0,15 |
| LIYCY0614 | 6x0,14 | 4,80 ±0,15 |
| LIYCY0814 | 8x0,14 | 5,10 ±0,20 |
| LIYCY0914 | 9x0,14 | 5,40 ±0,20 |
| LIYCY1014 | 10x0,14 | 5,80 ±0,20 |
| LIYCY1514 | 15x0,14 | 6,50 ±0,20 |
| ||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100m ring |
|
| Manufacturer |
| Klasing http://www.klasing-kabel.de |
|
Stregkode:
87295
Intern reference:
87295
Varekode:
LIYCY0414
