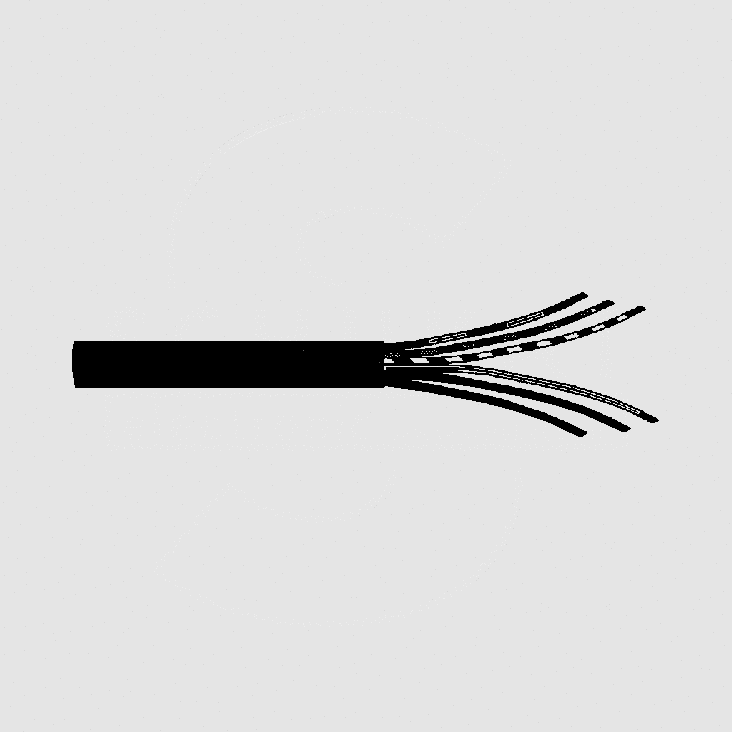

Control Cable 2x0,14mm² Grey
Varenummer:
87-284
Varekode:
LIYY0214
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe: G1411
KLASING PVC Control Cables
Series: LIYY
Twisted, Unshielded
Cross-Section: 0,14mm2
Colour: Grey
| Features |
 |
|
| Conductor Insulation: | PVC YI 2 |
| Conductor Colours: | DIN 47 100 |
| Conductor Composition: | 18x0,10mm |
| Outer Jacket: | PVC YM 2 |
| Colour: | Grey (RAL 7032) |
| Flammability: | Flame Resistant IEC332.1 |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 300V |
| Test Voltage: | 1,2kV |
| Temperature Range Moving: | -10...+70°C |
| Temperature Range Stationary: | -20...+70°C |
| Insulation Resistance, Min.: | 100MOhmxkm |
| Conductor Resistance, Max.: | 135Ohm/km |
|
|
| Part Nr. | Cross-Section | OuterØ |
| [mm2] | [mm] | |
| LIYY0214 | 2x0,14 | 3,10 ±0,15 |
| LIYY0314 | 3x0,14 | 3,20 ±0,15 |
| LIYY0414 | 4x0,14 | 3,50 ±0,15 |
| LIYY0514 | 5x0,14 | 4,00 ±0,15 |
| LIYY0614 | 6x0,14 | 4,30 ±0,15 |
|
||
Stregkode:
8017059103387
Intern reference:
87284
Varekode:
LIYY0214
