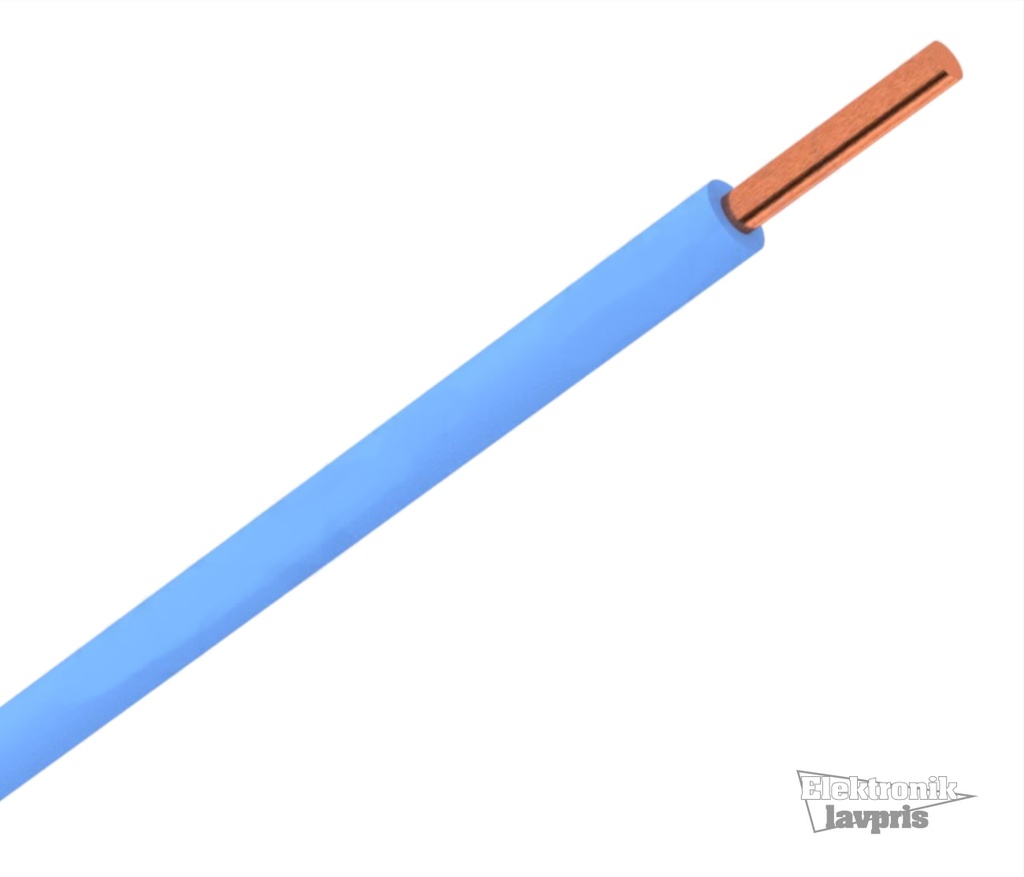

PVC-Ledning H07V-K, 1,5mm², Blå

Harmonized PVC stranded hook-up wires

For internal wiring of devices
Being used to wire lighting, tubes, surfaces and concealed installations for signal systems

Stranded copper wire conductor according to VDE 0295 class 5
Insulated with PVC TI 1 according to HD 21.1 S3
Conductor identification meets VDE 0293

Outer Diameter: 3,03mm
Rated Voltage, UO / U: 450V/700V
Test Voltage:2500V
Conductor Cross-Section: 1,5mm2
Conductor Composition: 32x0,235mm
Minimum Bend Radius: 4 x Diameter
Temperatue Range:
Fixed Installation:
-40...+70°C
At Installation:
+5...+70°
