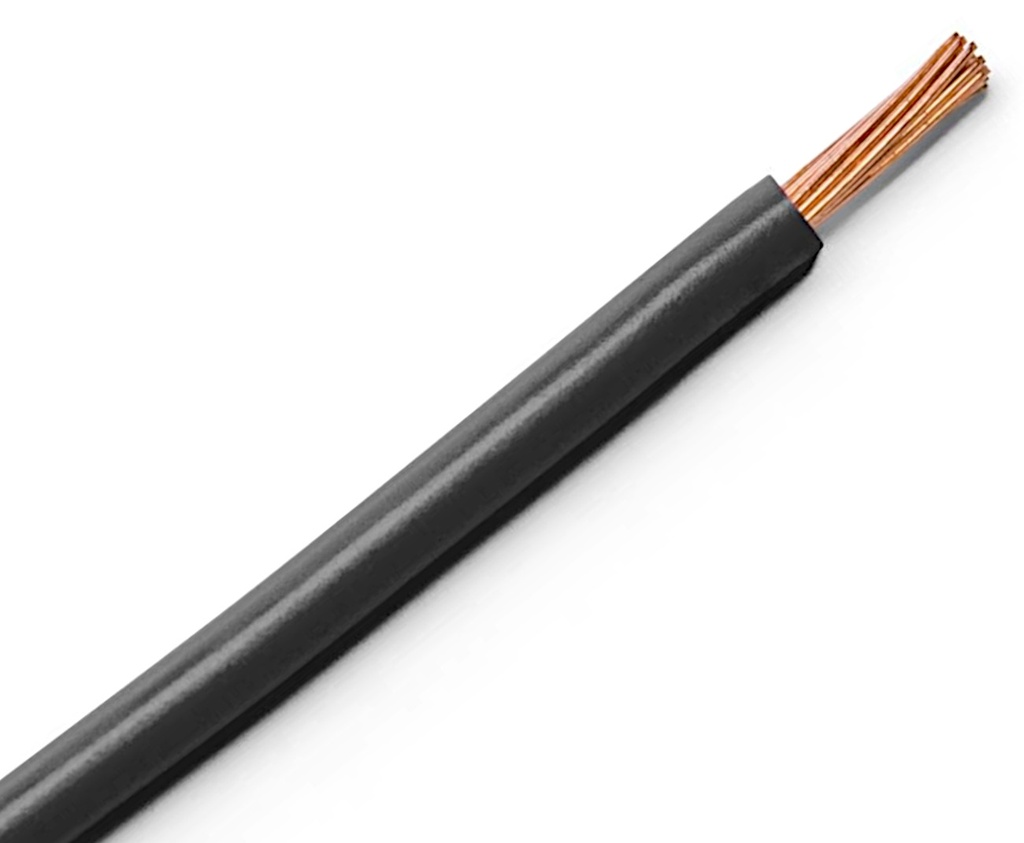

PVC-ledning H07V-K, 1,5mm², Sort

H07V-K, flertrådet, kobber, 1.5mm², PVC, 450V,750V, Class 5, sort

Harmonized PVC stranded hook-up wires
For internal wiring of devices
Being used to wire lighting, tubes, surfaces and concealed installations for signal systems

• Stranded copper wire conductor according to VDE 0295 class 5
• Insulated with PVC TI 1 according to HD 21.1 S3
• Conductor identification meets VDE 0293

Outer Diameter: 3,03mm
Rated Voltage, UO / U: 450V/700V
Test Voltage: 2500V
Conductor Cross-Section: 1,5mm2
Conductor Composition: 32x0,235mm
Minimum Bend Radius: 4 x Diameter
Temperatue Range
Fixed Installation:
-40...+70°C
At Installation:
+5...+70°C
