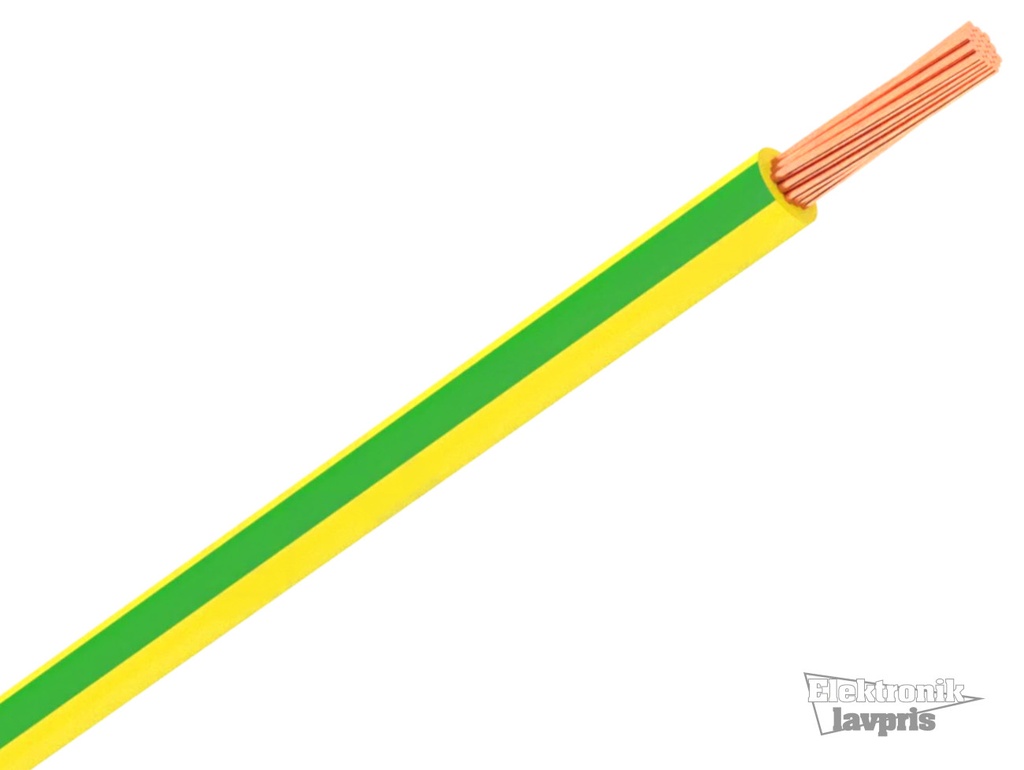

Wire H05V-K 1,0mm² Green/Yellow
Varenummer:
87-257
Varekode:
H05VK100GN/GE
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
G1245
XBK PVC Stranded Hook-Up Wires
Series: H05VK
Cross-Section: 1,0mm2
Colours: Various
G1245
XBK PVC Stranded Hook-Up Wires
Series: H05VK
Cross-Section: 1,0mm2
Colours: Various
| Features |
| • Harmonized PVC stranded hook-up wires • For internal wiring of devices • Being used to wire lighting, tubes, surfaces and concealed installations for signal systems |
 |
| Construction |
| • Stranded copper wire conductor according to VDE 0295 class 5 • Insulated with PVC TI 1 according to HD 21.1 S3 • Conductor identification meets VDE 0293 |
|
| Technical Specifications |
| |
| Outer Diameter: | 2,5mm |
| Rated Voltage, UO / U: | 300V/500V |
| Test Voltage: | 2000V |
| Conductor Cross Section: | 1mm2 |
| Conductor Composition: | 32x0,195mm |
| Minimum Bending Radius: | 4 x Diameter |
| Temperature Range | |
| Fixed Installation: | -40...+70°C |
| At Installation: | +5...+70°C |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100m in dispenser box |
|
| Manufacturer |
 |
| http://www.xbk-kabel.de |
|
Stregkode:
87257
Intern reference:
87257
Varekode:
H05VK100GN/GE
