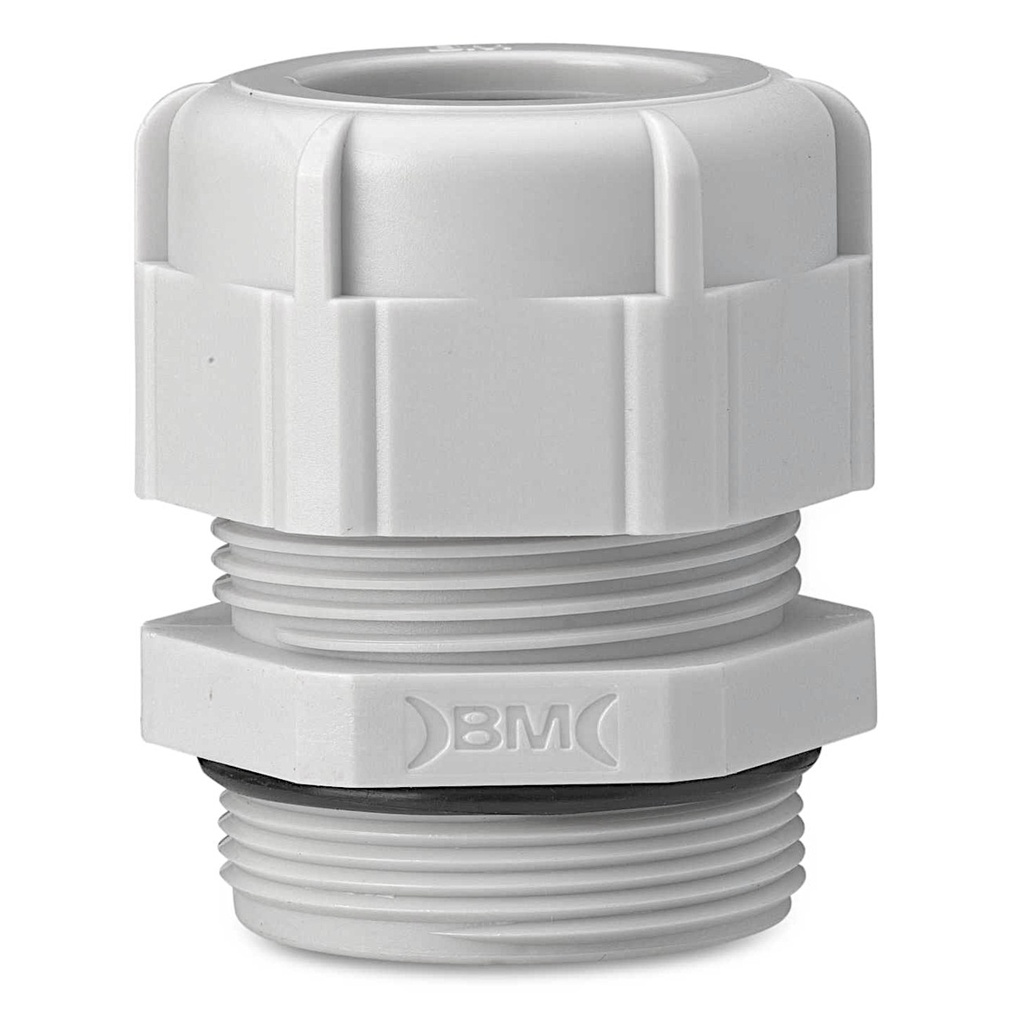

Kabelforskruning M12, 3-6,5 mm
Nylon Kabeforskruning, Metrisk gevind, IP68
- Materiald: polyamid (PA 6.6), selvslukkende i henhold til UL 94 V2 og IEC 695-2-1 (850 °C)
- Driftstemperatur: fra -20 °C til +90 °C
- Indvendig pakning og skive: NBR (nitrilgummi), 70 Shore A
- Ifølge std.: EN 62444:2013
- Montage: fjern eller flyt ikke pakningen; stram på en flad og glat overflade
Gland thread: M12
Thread pitch: 1.5
Cable external diameter: 3...6.5mm
Thread length: 9mm
Flammability rating: UL94V-2
cid: 22PA01A
NYLON CABLE GLANDS · METRIC THREAD · IP68 · STANDARD
Product Category: nylon cable glands
Material: polyamide (PA 6.6), self-extinguishing according to UL 94 V2 and IEC 695-2-1 (850 °C)
Operating temperature: from -20 °C to +90 °C
Inner gasket and washer: NBR (nitrile rubber), 70 Shore A
According to std.: EN 62444:2013
Assembly: don't remove or move the gasket; tighten on a flat and smooth surface.
cid: 22PA01A
Stregkode:
87132
Intern reference:
87132
Varekode:
MBF12
