Kabelforskruning, PG13,5 Strain Relief 7-12mm
Varenummer:
87-123
Varekode:
BFK13
Vægt:
20 g
Lagerstatus:
Ikke på lager

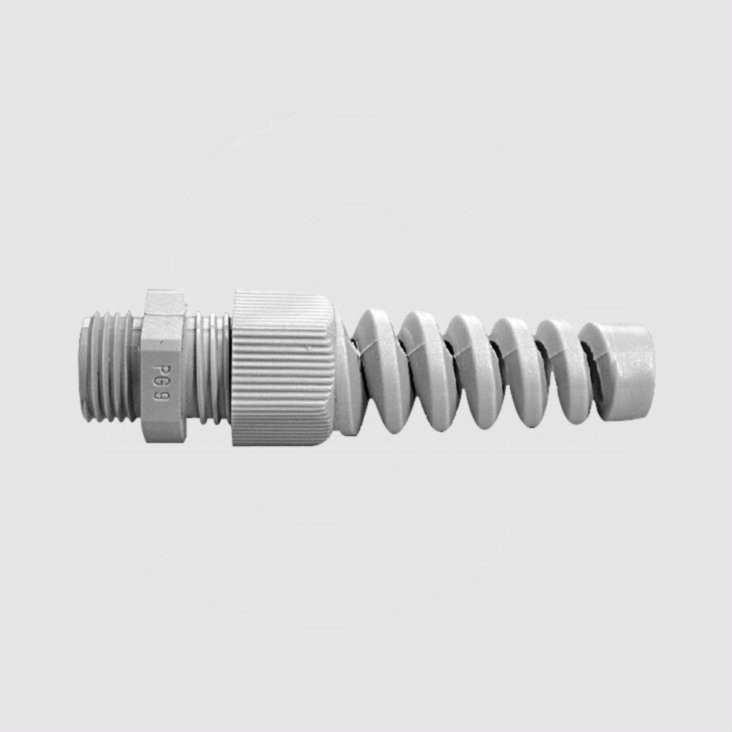

Kabelforskruning, PG13,5 - Trækaflastning 7-12 mm
Gruppe: G8423
BOPLA Polyamide Cable Glands IP68
Series: BFK
With Strain Relief and Buckle-proof Spiral
Thread: PG
Colour: Light Grey (Similar to RAL7035)
| Features |
| • PG cable glands made of polyamide IP68 • With strain relief lamellas for a secure cable grip • Additional buckle-proof spiral to prevent cable rupture |
 |

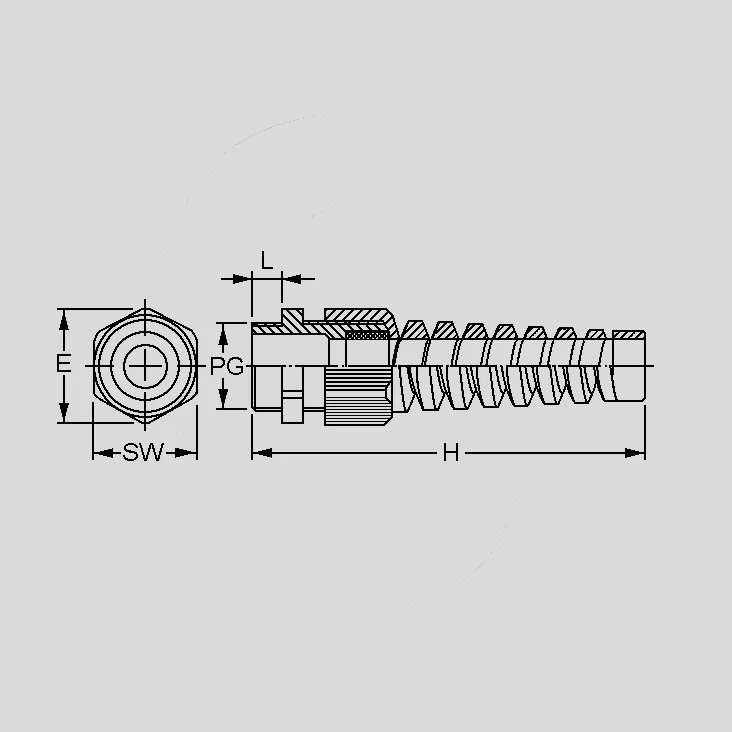

| Dimensions |
| Part Nr. | PG | PG | SW | Cable-Ø | L | H | E | Outer-Ø | [mm] | [mm] | [mm] | [mm] | [mm] | BFK7 | 7 | 12,5 | 15 | 3...6,5 | 8 | 63 | 16,3 | BFK9 | 9 | 15,2 | 19 | 4...8 | 8 | 74 | 21 | BFK11 | 11 | 18,6 | 22 | 5...10 | 8 | 87 | 24,5 | BFK13 | 13,5 | 20,4 | 24 | 6...12 | 9 | 98 | 26,5 | ||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable counter nuts at product group G8424. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.bopla.de |
|
