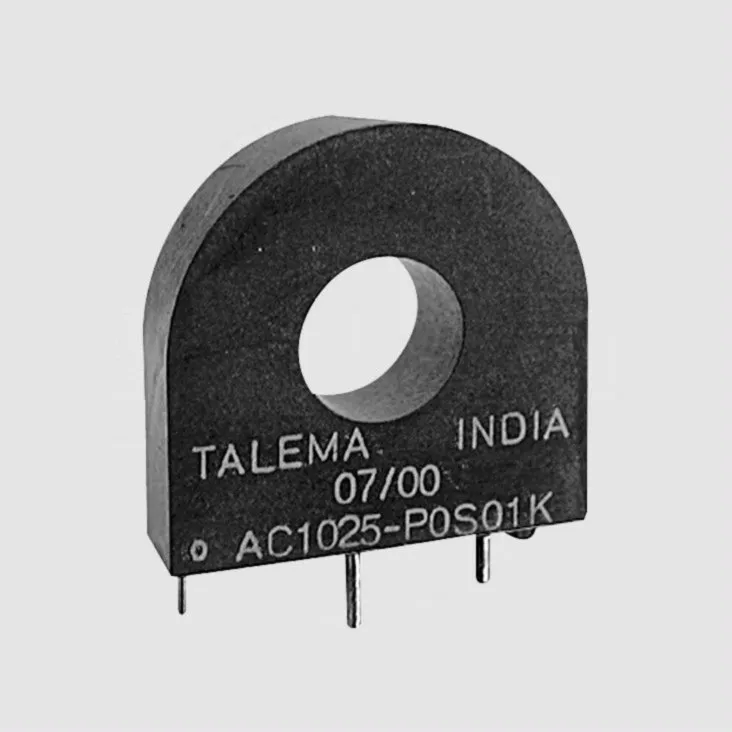

Current Transformer 1000/1 5A

Varenummer:
86-338
Varekode:
AC1005
Vægt:
20 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/5
Kr. 47,81
v/25
Kr. 39,85
v/100
Kr. 31,88
v/1000
Kr. 23,91

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/29295/image_1920?unique=dac6f7b https://elektroniklavpris.odoo.com/web/image/product.template/29295/image_1920?unique=dac6f7b
Gruppe: D3115
TALEMA Current Transformers for 50/60Hz
Series: AC
PCB Mounting, High Output Voltage, Potted
Features
• For optimal PC board mounting
• Fully potted
• Centerhole for current-carrying line
• High output voltage
Application
AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.
Technical Specifications
Turns Ratio:
1000:1
Terminating Resistor:
100W
Electrical Specifications
Part Nr.
IP
PRL100
UA100W
UA500W
UA2kW
 [A]
[W]
[V/A]
[V/A]
[V/A]
AC10055
0,0025
0,10
0,46
1,43
AC101010
0,0100
0,10
0,45
1,10
AC101515
0,0230
0,10
0,45
0,90
AC102020
0,0400
0,10
0,43
0,76
AC102525
0,0630
0,10
0,47
1,06
AC104040
0,1600
0,10
0,46
0,87
AC105050
0,2500
0,10
0,43
0,76
IP = Nominal Input Current, PRL100 = Power Load Resistance, UA100W = Output Voltage per Input Current at 100W, UA500W = Output Voltage per Input Current at 500W, UA2kW = Output Voltage per Input Current at 2kW
Dimensions
Part Nr.
L
ID
H
W
C
D
 [mm]
[mm]
[mm]
[mm]
[mm]
[mm]
AC100523,8
9,5
23,8
11,12
15,24
7,62
AC101023,8
9,5
23,8
11,12
15,24
7,62
AC101523,8
9,5
23,8
11,12
15,24
7,62
AC102023,8
9,5
23,8
11,12
15,24
7,62
AC102530,2
11,4
30,2
14,30
20,32
10,16
AC104034,9
14,6
34,9
14,30
25,40
10,16
AC105034,9
14,6
34,9
14,30
25,40
10,16
Note
The terminating resistor RL and the one-turn primary are not supplied.
Pin 3 is not connected and only used for mechanical support.
