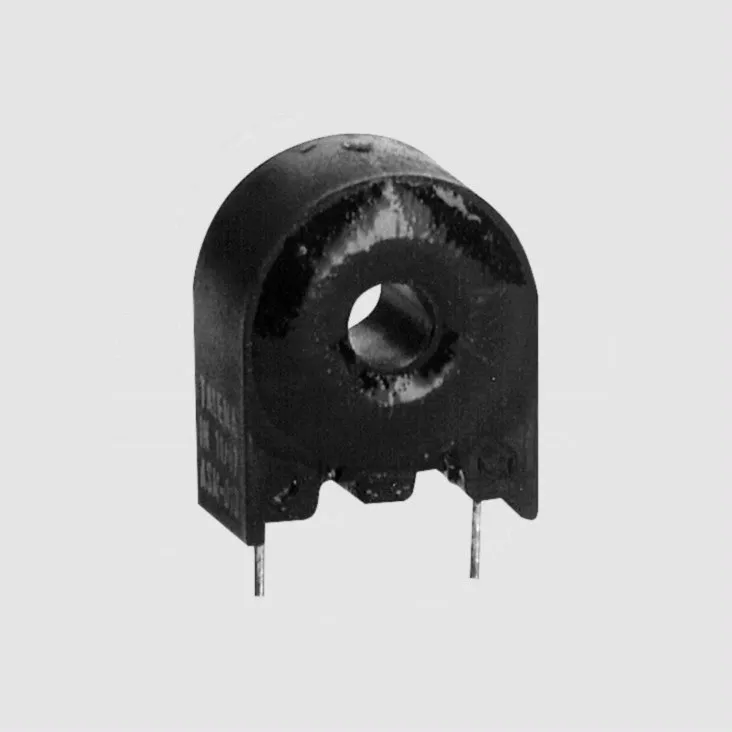

Current Transformer 1-10A 10%
Varenummer:
86-335
Varekode:
ASM10
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
D3113

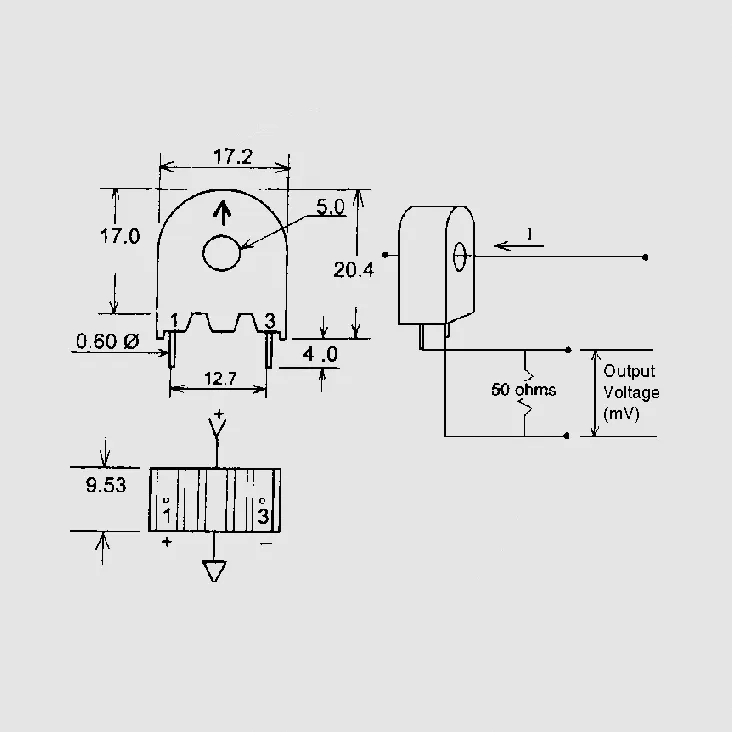

TALEMA Current Transformers for 50/60Hz
Series: ASM
PCB Mounting, Potted
TALEMA Current Transformers for 50/60Hz
Series: ASM
PCB Mounting, Potted
| Features |
| • For optimal PC board mounting • Fully potted • Centerhole for current-carrying line • Manufactured in an ISO-9001 approved factory |
 |
| Application |
| ASM series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns. |
|
| Technical Specifications |
| |
| Isolation Voltage (Prim./Sec.): | 2500V AC |
| Mains Frequency: | 50/60Hz |
| Temperature Range: | - 40...120°C |
| |
| Part Nr. | Current Range | Tolerance |
| [A] | [%] | |
| ASM10 | 1...10 | ±10 |
| ASM50 | 5...50 | ±10 |
| ASM100 | 5...100 | ±10 |
| ||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.talema.de |
|
