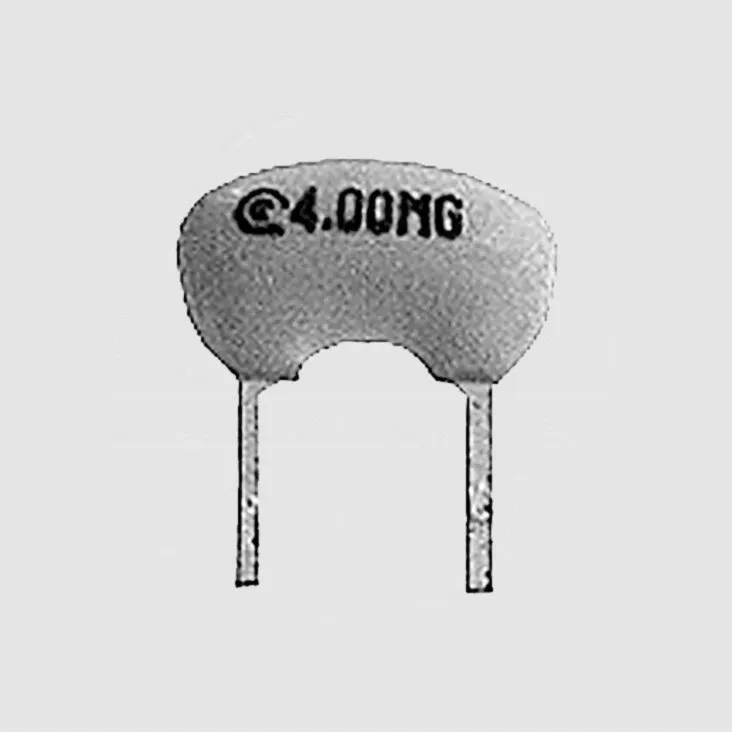

Ceramic Resonator 2-Pole 4,00MHz
Varenummer:
86-098
Varekode:
ZTA4,00MG
Vægt:
0 g
Lagerstatus:
Lager: 15 stk.
Gruppe: D9512
Ceramic Resonators
Series: ZTB, ZTA
Without Load Capacitance
Frequency: 455k...12MHz
| Technical Specifications |
| Part Nr. | f | Tol. | TStab | Age |
| [MHz] | [%] | [%] | [%] | |
| ZTB455EB | 0,455 | ±2 | ±0,3 | ±0,5 |
| ZTA2.00MG | 2,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTAWS2.00MG | 2,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTA3.58MG | 3,58 | ±0,5 | ±0,3 | ±0,3 |
| ZTAWS3.58MG | 3,58 | ±0,5 | ±0,3 | ±0,3 |
| ZTAWS4.0MG | 4,00 | ±0,5 | ±0,3 | ±0,3 |
| ZTA12.00MT | 12,00 | ±0,5 | ±0,3 | ±0,3 |
| f = Frequency, Tol. = Frequency, TStab = Temperature Stability, -20...+80°C, Age = Aging for 10 Years |
||||
 |
||||
| Part Nr. | Rres | Uwith | Riso |
| [W] | [V DC] | [W] | |
| ZTB455EB | 20 | - | - |
| ZTA2.00MG | 80 | 100 | 5x108 |
| ZTAWS2.00MG | 80 | 100 | 5x108 |
| ZTA3.58MG | 30 | 100 | 5x108 |
| ZTAWS3.58MG | 35 | 100 | 5x108 |
| ZTAWS4.0MG | 30 | 100 | 5x108 |
| ZTA12.00MT | 25 | 100 | 5x108 |
| Rres = Resonant Resistance, Uwith = Voltage Sustaining Capability, 5s, Riso = Insulation Resistance | |||
Stregkode:
86098
Intern reference:
86098
Varekode:
ZTA4,00MG
